R4W48A
Артикул:
₴ 34,224.00

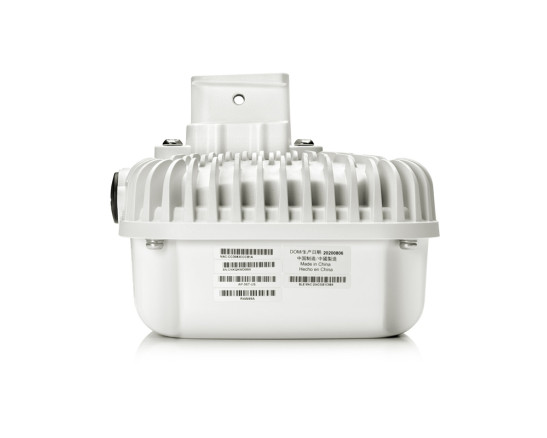

Aruba AP-567 (RW) 802.11ax Dual 2x2:2 Radio Integrated Directional Antenna Outdoor AP.
Entry-level Wi-Fi 6 (802.11ax) access point series for outdoor and warehouse environments. Higher speed, Wi-Fi 6 version of the Aruba 360 (Wi-Fi 5) Series APs. Weatherproof and temperature hardened Wi-Fi 6 outdoor APs with maximum aggregate on-air data rate of 1.49 Gbps (HE80/HE20). Designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically reducing airtime contention between clients.
R4W48A Specification |
|
|
Internet of Things (IoT) |
|
|
Internet of Things (IoT) Compatible |
Yes |
|
Communications Technology |
Bluetooth Low Energy (LE), Zigbee |
|
Miscellaneous |
|
|
Compliant Standards |
CB, UL 2043, FCC, EN 60601-1-2, cTUVus, IP67, IP66, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, ISED, IEC/EN/UL 60950, ETSI 300 019-2-4, RED 2014/53/EU |
|
Pricing Type |
BTO |
|
Networking |
|
|
Form Factor |
External |
|
Connectivity Technology |
Wireless |
|
Data Transfer Rate |
1.49 Gbps |
|
Line Coding Format |
CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA |
|
Data Link Protocol |
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
|
Spread Spectrum Method |
OFDM, DSSS, OFDMA |
|
Frequency Band |
2.4 GHz, 5 GHz |
|
Performance |
Maximum data rate (5 GHz): 1.2 Gbps ¦ Maximum data rate (2.4 GHz): 574 Mbps |
|
Capacity |
Wireless clients per Wi-Fi radio: 256 ¦ BSSIDs per radio: 16 ¦ OFDMA units: 16 |
|
Status Indicators |
System, status, radio |
|
Encryption Algorithm |
WPA3-Enhanced Open, WPA2-MPSK |
|
Environmental Parameters |
|
|
Min Operating Temperature |
-40 °F |
|
Max Operating Temperature |
131 °F |
|
Humidity Range Operating |
5 - 95% (non-condensing) |
|
General |
|
|
Device Type |
Wireless access point |
|
Ruggedized Design |
Outdoor |
|
Width |
6.5 in |
|
Depth |
6.5 in |
|
Height |
4.3 in |
|
Expansion / Connectivity |
|
|
Interfaces |
1 x 1000Base-T - RJ-45 ¦ 2 x antenna ¦ 1 x console - USB-C |
|
Power |
|
|
Power Over Ethernet (PoE) Supported |
PoE+ |
|
Power Consumption Operational |
15.6 Watt |
|
Antenna |
|
|
Antenna |
Internal |
|
Directivity |
Directional |
|
Software / System Requirements |
|
|
OS Required |
ArubaOS, InstantOS 8.8.0.0 |
