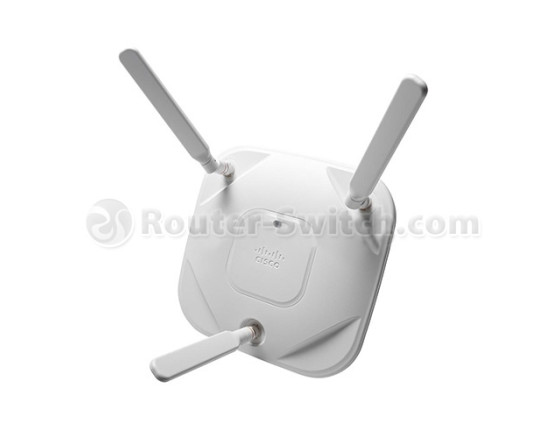

AIR-SAP1602E-C-K9 (USED)

AIR-SAP1602E-C-K9 Specification

Devide Type

Wireless  Access point

Regulatory domain

C regulatory domain

Software

• Cisco Unified Wireless Network Software (available in Q4CY12)
• Cisco IOS ® Software Release (available in Q4CY12)

Data rates supported

• ● 802.11a: up to 54 Mbps
  ● 802.11g: up to 54 Mbps
• ● 802.11n on 2.4 GHz: up to 300Mbps

Maximum number of nonoverlapping channels

5 GHz
● 802.11a:
◦ 20 MHz: 24
● 802.11n:
◦ 20 MHz: 24
◦ 40 MHz:9

2.4 GHz
● 802.11b/g:
◦ 20 MHz: 3
● 802.11n:
◦ 20 MHz: 3

Antenna (purchase separately)

• Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
• Cisco offers the industry's broadest selection of 802.11n antennas delivering optimal coverage for a variety of deployment scenarios

Interfaces

• 10/100/1000BASE-T autosensing (RJ-45)
• Management console port (RJ-45)

System memory

• 256 MB DRAM
• 32 MB flash

Power consumption (power supply purchase separately)

15.4 Watts (Standard 802.3af POE)

IEEE standards

• IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d

Security

• ● 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
  ● 802.1X
• ● Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)

Extensible Authentication Protocol (EAP) types

• ● EAP-Transport Layer Security (TLS)
  ● EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
  ● Protected EAP (PEAP) v0 or EAP-MSCHAPv2
• ● EAP-Flexible Authentication via Secure Tunneling (FAST)
  ● PEAP v1 or EAP-Generic Token Card (GTC)
  ● EAP-Subscriber Identity Module (SIM)

Frequency band and 20-MHz operating channels

C (C regulatory domain):

• 2.412 to 2.472 GHz; 13 channels
• 5.745 to 5.825 GHz; 5 channels

Environmental

• ● Nonoperating (storage) temperature: -22 to 158°F (-30 to 70°C)
  ● Nonoperating (storage) Altitude Test: -25˚C, 15,000 ft.
  ● Operating temperature: -4 to 122°F (-20 to 50°C)
• ● Operating humidity: 10 to 90 % (noncondensing)
  ● Operating Altitude Test: -40˚C, 9843 ft.
