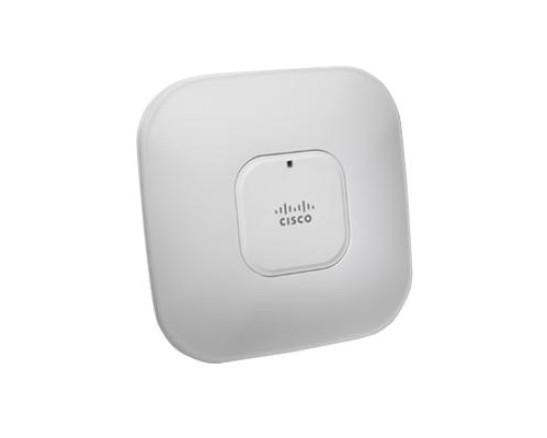

AIR-LAP1141N-A-K9 (USED)
Артикул:
₴ 8,418.00
802.11g/n Fixed Unified AP; Int Ant; A Reg Domain 1140 Series Access Points: Single Band
The Cisco AIR-LAP1141N-A-K9 (USED) is a fixed unified access point that supports 802.11g/n with integrated antennas and operates in a single-band. Ideal for small to medium businesses seeking reliable indoor wireless connectivity, this device ensures robust network performance within regulated domains. Target customers include network engineers and IT procurement staff looking for cost-effective wireless solutions.
AIR-LAP1141N-A-K9 (USED) Specifications |
|
| Software | ● Cisco Unified Wireless Network Software Release 5.2 or later ● Cisco IOS® Software Release 12.4(21a)JA |
| 802.11n Capabilities | ● 2x3 multiple-input multiple-output (MIMO) with two spatial streams ● Maximal ratio combining (MRC) ● Legacy beamforming (hardware supports this capability; not yet enabled in software) ● 20- and 40-MHz channels ● PHY data rates up to 300 Mbps ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 dynamic frequency selection (DFS) (Bin 5) ● Cyclic shift diversity (CSD) support |
| Maximum Number of NonOverlapping Channels |
2.4 GHz 5 GHz |
| Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain | |
| Integrated Antenna | ● 2.4 GHz, Gain 4.0 dBi, horizontal beamwidth 360° ● 5 GHz, Gain 3 dBi, horizontal beamwidth 360° |
| Interfaces | ● 10/100/1000BASE-T autosensing (RJ-45) ● Management console port (RJ45) |
| Indicators | ● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
| Dimensions (W x L x H) | ● Access point (without mounting bracket): 8.7 x 8.7 x 1.84 in. (22.1 x 22.1 x 4.7 cm) |
| Weight | ● 2.3 lbs (1.04 kg) |
| Environmental | ● Nonoperating (storage) temperature: -22 to 185°F (-30 to 85°C) ● Operating temperature: 32 to 104°F (0 to 40°C) ● Operating humidity: 10 to 90% percent (non-condensing) |
| System Memory | ● 128 MB DRAM ● 32 MB flash |
| Input Power Requirements | ● AP1140: 44 to 57 VDC ● Power Supply and Power Injector: 100 to 240 VAC; 50 to 60Hz |
| Powering Options | ● 802.3af Ethernet Switch ● Cisco AP1140 Power Injectors (AIR-PWRINJ4=) ● Cisco AP1140 Local Power Supply (AIR-PWR-B=) |
| Power Draw | ● AP1140: 12.95 W Note: When deployed using PoE, the power drawn from the power sourcing equipment will be higher by some amount dependent on the length of the interconnecting cable. This additional power may be as high as 2.45W, bringing the total system power draw (access point + cabling) to 15.4W. |
| Warranty | Limited Lifetime Hardware Warranty |
