AIR-LAP1041N-E-K9

AIR-LAP1041N-E-K9

Артикул:
₴ 19,941.00

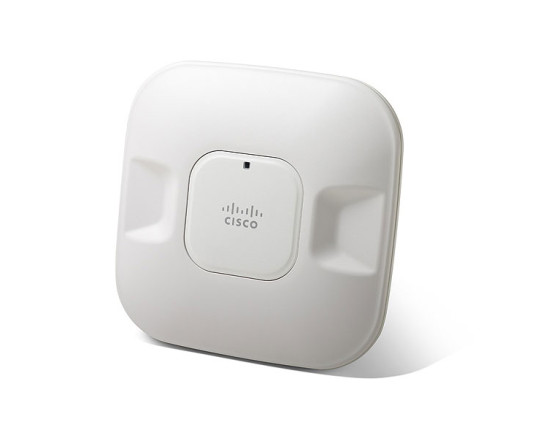

Cisco 1040 Access Point AIR-LAP1041N-E-K9 802.11g/n Fixed Unified AP; Int Ant; E Reg Domain
Модель: AIR-LAP1041N-E-K9
Виробник: Cisco
Наявність:В наявності

Опис Created with Pixso.

Cisco 1040 Access Point AIR-LAP1041N-E-K9 is an 802.11g/n Fixed Unified AP with integrated antenna, designed for use in the E Reg Domain. It provides reliable and high-performance wireless connectivity, making it suitable for various applications.

AIR-LAP1041N-E-K9 Specifications

802.11n Version 2.0 (and Related) Capabilities
●  2x3 Multiple-Input Multiple-Output (MIMO) with two spatial streams
●  Maximal ratio combining (MRC)
●  Legacy beamforming
●  20- and 40-MHz channels
●  PHY data rates up to 300 Mbps
●  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
●  802.11 Dynamic Frequency Selection (DFS) (Bin 5)
●  Cyclic Shift Diversity (CSD) support

Maximum Number of Nonoverlapping Channels

2.4 GHz

●  802.11b/g:
◦   20 MHz: 3
●  802.11n:
◦   20 MHz: 3

5 GHz

●  802.11a:
◦   20 MHz: 19
●  802.11n:
◦   20 MHz: 19
◦   40 MHz: 11

Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.

Maximum Transmit Power

2.4 GHz

●  802.11b (CCK)
◦   28 dBm with 2 antennas
●  802.11g (non HT duplicate mode)
◦   28 dBm with 2 antennas
●  802.11n (HT20)
◦   28 dBm with 2 antennas

5 GHz

●  802.11a
◦   28 dBm with 2 antennas
●  802.11n non -HT duplicate (802.11a duplicate) mode
◦   28 dBm with 2 antennas
●  802.11n (HT20)
◦   27 dBm with 2 antennas
●  802.11n (HT40)
◦   27 dBm with 2 antennas

Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.

Integrated Antenna

 ● 2.4 GHz, Gain 4.0 dBi, horizontal beamwidth 360°
● 5 GHz, Gain 3 dBi, horizontal beamwidth 360°

Dimensions (W x L x H)

Access point (without mounting bracket): 8.7 x 8.7 x 1.84 in. (22.1 x 22.1 x 4.7 cm)

Weight

2.3 lbs (1.04 kg)

Environmental

● Nonoperating (storage) temperature: -22 to 185°F (-30 to 85°C)
● Operating temperature: 32 to 104°F (0 to 40°C)
● Operating humidity: 10 to 90% percent (non-condensing)
System Memory



● 128 MB DRAM
● 32 MB flash
Input Power Requirements

● AP1140: 44 to 57 VDC
● Power Supply and Power Injector: 100 to 240 VAC; 50 to 60 Hz
Powering Options

● 802.3af Ethernet Switch
● Cisco AP1140 Power Injectors (AIR-PWRINJ4=)
● Cisco AP1140 Local Power Supply (AIR-PWR-B=)

Warranty

Limited Lifetime Hardware Warranty
