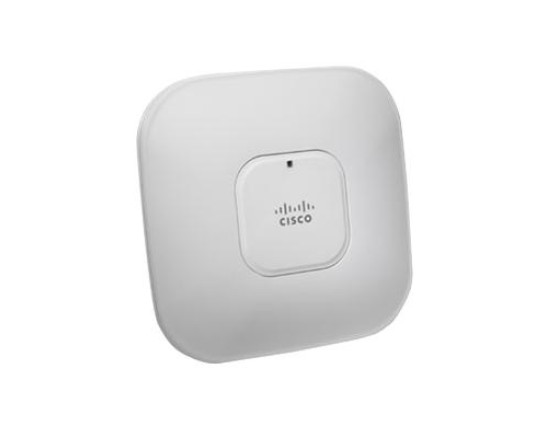

AIR-CAP3602I-N-K9

Software

Cisco Unified Wireless Network Software Release with AireOS Wireless Controllers:

●  7.2 or later for the Cisco Aironet 3600 Series Access Point

●  7.4 or later for support of the Wireless Security Module for the 3600 Series Access Point

●  7.5 or later for support of the 802.11ac Wave 1 Module for the 3600 Series Access Point

Cisco IOS XE Software Release:

●  3.2.0SE or later for the Cisco Aironet 3600 Series Access Point

●  3.3.0SE or later for the Cisco 802.11ac Wave 1 Module for the 3600 Series Access Point

●  Wireless Security Module for the 3600 Series Access Point support

Supported Wireless LAN Controllers

AireOS Wireless Controllers

●  Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst ® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex ® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller

Cisco IOS Wireless Controllers

●  Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches

Integrated Antenna

●  2.4 GHz, Gain 2 dBi, internal omni, horizontal beamwidth 360°

●  5 GHz, Gain 4 dBi, internal omni, horizontal beamwidth 360°

External Antenna (Sold Separately)

●  Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)

●  Cisco offers the industry's broadest selection of 802.11n antennas delivering optimal coverage for a variety of deployment scenarios

Interfaces

●  10/100/1000BASE-T autosensing (RJ-45)

●  Management console port (RJ-45)

Indicators

●  Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions
(W x L x H)

●  Access point (without mounting bracket): 8.7 x 8.7 x 2.11 in. (22.1 x 22.1 x 5.4 cm)

Weight

●  2.5 lbs (1.13 kg)

Environmental

Cisco Aironet 3600i

●  Nonoperating (storage) temperature: -22 to 158°F (-30 to 70°C)

●  Nonoperating (storage) Altitude Test -25˚C, 15,000 ft.

●  Operating temperature: 32 to 104°F (0 to 40°C)

●  Operating humidity: 10 to 90% percent (noncondensing)

●  Operating Altitude Test -40˚C, 9843 ft.

Cisco Aironet 3600e

●  Nonoperating (storage) temperature: -22 to 158°F (-30 to 70°C)

●  Nonoperating (storage) Altitude Test - 25˚C, 15,000 ft.

●  Operating temperature: -4 to 131°F (-20 to 55°C)

●  Operating humidity: 10 to 90 percent (noncondensing)

●  Operating Altitude Test -40˚C, 9843 ft.

System Memory

●  256-MB DRAM

●  32-MB flash

Input Power Requirements

●  AP3600: 44 to 57 VDC

●  Power Supply and Power Injector: 100 to 240 VAC; 50 to 60 Hz

Power draw

* This is the power required at the PSE, which is a switch or injector.

Description

AP Functionality

PoE Budget

(Watts)

802.3af

E-PoE

802.3at PoE+

PWRINJ4

PoE+

802.3at

3600 - No external module installed

4x4:3 on 2.4/5 GHz

15.4

ü

ü

ü

3600 - 2.4GHz radio disabled + Wireless Security Module

4x4:3 on 5 GHz + WSM

15.4

ü

n/a

n/a

3600 - 2.4GHz radio disabled + 802.11ac Module

4x4:3 on 5 GHz only + 11ac

15.4

ü

n/a

n/a

PoE

802.3af

3600 + Wireless Security Module

4x4:3 on 2.4/5 GHz + WSM

18.4

×

ü

ü

3600 + 802.11ac Module

4x4:3 on 2.4/5 GHz + 11ac

19.6

×

ü

ü

3600 + Universal Small Cell Module (USC5310)

4x4:3 on 2.4/5 GHz + USC5310

22

×

×

ü

Warranty

Limited Lifetime Hardware Warranty
