AIR-CAP3602I-I-K9
Артикул:
₴ 59,754.00

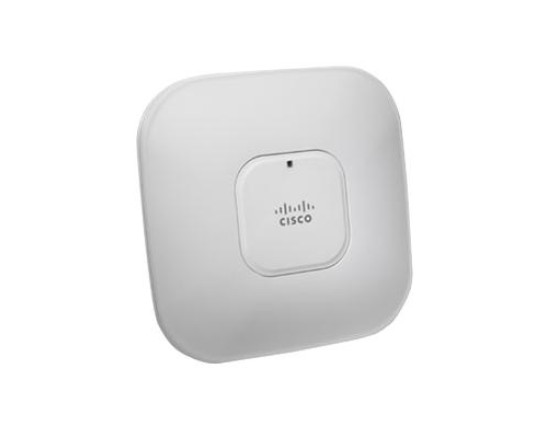

Cisco AIR-CAP3602I-I-K9 802.11n CAP w/CleanAir; 4x4:3SS; Mod; Int Ant; I Reg Domain
Designed to address the wireless connectivity needs of factories, large office and other indoor industrial environment, AIR-CAP3602I-I-K9 is the enterprise class, three-spatial-stream access point with Dual-band, controller-based 802.11a/g/n, internal antennas and A regulatory domain. Cisco Aironet 3600 series delivers industry leading performance for secure and reliable wireless connection with up to 450 Mpbs or 1.3 Gbps with IEEE802.11ac module over great coverage to ensure the robust mobility experience.
Control-based Cisco Aironet 3600 series access point, a component of the Cisco Unified Wireless Network, enables the capability to support voice, location services, guest access, and advanced security and scales to up to 18,000 access points with full Layer 3 mobility across central or remote locations. Modular architecture enables flexible add-on options, which include Wireless Security Module, IEEE802.11ac module or the Cisco Universal Small Cell 5310 Module.
AIR-CAP3602I-I-K9 Specifications |
|||||||||||||
|
Software |
Cisco Unified Wireless Network Software Release with AireOS Wireless Controllers: ● 7.2 or later for the Cisco Aironet 3600 Series Access Point ● 7.4 or later for support of the Wireless Security Module for the 3600 Series Access Point ● 7.5 or later for support of the 802.11ac Wave 1 Module for the 3600 Series Access Point Cisco IOS XE Software Release: ● 3.2.0SE or later for the Cisco Aironet 3600 Series Access Point ● 3.3.0SE or later for the Cisco 802.11ac Wave 1 Module for the 3600 Series Access Point ● Wireless Security Module for the 3600 Series Access Point support |
||||||||||||
|
Supported Wireless LAN Controllers |
AireOS Wireless Controllers ● Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst ® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex ® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller Cisco IOS Wireless Controllers ● Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches |
||||||||||||
|
Integrated Antenna |
● 2.4 GHz, Gain 2 dBi, internal omni, horizontal beamwidth 360° ● 5 GHz, Gain 4 dBi, internal omni, horizontal beamwidth 360° |
||||||||||||
|
External Antenna (Sold Separately) |
● Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) ● Cisco offers the industry's broadest selection of 802.11n antennas delivering optimal coverage for a variety of deployment scenarios |
||||||||||||
|
Interfaces |
● 10/100/1000BASE-T autosensing (RJ-45) ● Management console port (RJ-45) |
||||||||||||
|
Indicators |
● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
||||||||||||
|
Dimensions |
● Access point (without mounting bracket): 8.7 x 8.7 x 2.11 in. (22.1 x 22.1 x 5.4 cm) |
||||||||||||
|
Weight |
● 2.5 lbs (1.13 kg) |
||||||||||||
|
Environmental |
Cisco Aironet 3600i ● Nonoperating (storage) temperature: -22 to 158°F (-30 to 70°C) ● Nonoperating (storage) Altitude Test -25˚C, 15,000 ft. ● Operating temperature: 32 to 104°F (0 to 40°C) ● Operating humidity: 10 to 90% percent (noncondensing) ● Operating Altitude Test -40˚C, 9843 ft. Cisco Aironet 3600e ● Nonoperating (storage) temperature: -22 to 158°F (-30 to 70°C) ● Nonoperating (storage) Altitude Test - 25˚C, 15,000 ft. ● Operating temperature: -4 to 131°F (-20 to 55°C) ● Operating humidity: 10 to 90 percent (noncondensing) ● Operating Altitude Test -40˚C, 9843 ft. |
||||||||||||
|
System Memory |
● 256-MB DRAM ● 32-MB flash |
||||||||||||
|
Input Power Requirements |
● AP3600: 44 to 57 VDC ● Power Supply and Power Injector: 100 to 240 VAC; 50 to 60 Hz |
||||||||||||
|
Power draw |
* This is the power required at the PSE, which is a switch or injector. |
||||||||||||
|
Description |
AP Functionality |
PoE Budget (Watts) |
802.3af |
E-PoE |
802.3at PoE+ PWRINJ4 |
||||||||
|
PoE+ 802.3at |
3600 - No external module installed |
4x4:3 on 2.4/5 GHz |
15.4 |
ü |
ü |
ü |
|||||||
|
3600 - 2.4GHz radio disabled + Wireless Security Module |
4x4:3 on 5 GHz + WSM |
15.4 |
ü |
n/a |
n/a |
||||||||
|
|
3600 - 2.4GHz radio disabled + 802.11ac Module |
4x4:3 on 5 GHz only + 11ac |
15.4 |
ü |
n/a |
n/a |
|||||||
|
PoE 802.3af |
3600 + Wireless Security Module |
4x4:3 on 2.4/5 GHz + WSM |
18.4 |
× |
ü |
ü |
|||||||
|
3600 + 802.11ac Module |
4x4:3 on 2.4/5 GHz + 11ac |
19.6 |
× |
ü |
ü |
||||||||
|
|
3600 + Universal Small Cell Module (USC5310) |
4x4:3 on 2.4/5 GHz + USC5310 |
22 |
× |
× |
ü |
|||||||
|
Warranty |
Limited Lifetime Hardware Warranty |
||||||||||||
