AIR-CAP1552E-E-K9
Артикул:
₴ 164,772.00

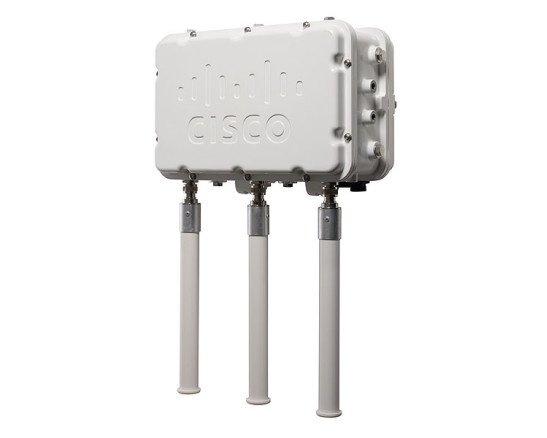

Cisco 1550 Access Point AIR-CAP1552E-E-K9 802.11N Outdoor Mesh Access Point, Ext. Ant., E Reg. Domain
The Cisco AIR-CAP1552E-E-K9 is an advanced 802.11N Outdoor Mesh Access Point designed to provide robust wireless coverage in challenging outdoor environments. Part of the Cisco 1550 series, this model supports external antennas and is compliant with the E regulatory domain. Ideal for creating resilient and expanded wireless networks, the Cisco 1550 Access Point ensures seamless connectivity even in harsh conditions.
AIR-CAP1552E-E-K9 Specifications |
||||||||||
|
802.11n Version 2.0 (and Related) Capabilities |
● 2x3 Multiple-Input Multiple-Output (MIMO) with two spatial streams
● Legacy beamforming
● 20- and 40-MHz channels
● PHY data rates up to 300 Mbps
● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
● 802.11 Dynamic Frequency Selection (DFS)
● Cyclic Shift Diversity (CSD) support
|
|||||||||
|
DOCSIS 3.0 Capabilities |
DOCSIS and EuroDOCSIS 3.0 8x4 cable modem provides: ● Eight (8) bonded channels on the downstream with total throughput in excess of 300 Mbps
● Designed to meet DOCSIS 3.0 specifications as well as backward compatibility with existing DOCSIS 2.0, 1.1 and 1.0 networks
● Enhanced packet processing technology to maximize performance
● Downstream data rates in excess of 300 Mbps (without overhead)
● Upstream data rates up to 100 Mbps (without overhead)
Channel-bonded cable modems must be used in conjunction with a Cable Modem Termination System (CMTS) that supports channel bonding per the DOCSIS 3.0 specifications. When used with a non-channel-bonded CMTS, channel‑bonded cable modems function as conventional DOCSIS 2.0 cable modems. |
|||||||||
|
Maximum Number of Nonoverlapping Channels |
2.4 GHz ● 802.11b/g:
◦ 20 MHz: 3
● 802.11n:
◦ 20 MHz: 3
|
5 GHz ● 802.11a:
◦ 20 MHz: 19
● 802.11n:
◦ 20 MHz: 19
◦ 40 MHz: 11
|
||||||||
|
Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain. |
||||||||||
|
Maximum Transmit Power |
2.4 GHz ● 802.11b (CCK)
◦ 28 dBm with 2 antennas
● 802.11g (non HT duplicate mode)
◦ 28 dBm with 2 antennas
● 802.11n (HT20)
◦ 28 dBm with 2 antennas
|
5 GHz ● 802.11a
◦ 28 dBm with 2 antennas
● 802.11n non -HT duplicate (802.11a duplicate) mode
◦ 28 dBm with 2 antennas
● 802.11n (HT20)
◦ 27 dBm with 2 antennas
● 802.11n (HT40)
◦ 27 dBm with 2 antennas
|
||||||||
|
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details. |
||||||||||
|
Network Interface |
● 10/100/1000BASE-T Ethernet, autosensing (RJ-45)
● Fiber SFP (1552E/EU/H)
● DOCSIS/EuroDOCSIS 3.0 (8x4) Cable modem interface (1552C/CU)
|
|||||||||
|
Dimensions (W x L x H) |
1552C/1552I: 12.3 x 8.6 x 5.6 in. (31.2 x 22.9 x 14.2 cm) 1552E/EU/CU/H: 12.3 x 8.6 x 6.1 in. (31.2 x 22.9 x 16.3 cm) |
|||||||||
|
Weight |
1552E/EU: 17.3 lbs (7.8 kg) 1552C/CU: 14 lbs (6.4 kg) 1552H: 17.6 lbs (8 kg) 1552I: 14 lbs (6.4 kg) Battery backup: 1.5 lbs (0.7 kg) Pole mounting bracket: 6.1 lbs (2.8 kg) Cable strand mounting bracket: 1.3 lbs (0.6 kg) |
|||||||||
|
Environmental |
Operating temperature: -40 to 55°C (-40 to 131°F) plus Solar Loading Storage temperature: -50 to 85°C (-58 to 185°F) Wind resistance: ● Up to 100-MPH sustained winds
● Up to 165-MPH wind gusts
|
|||||||||
|
Environmental Ratings |
● IP67
● NEMA Type 4X
|
|||||||||
|
Antenna Gain |
● Integrated Dual Band Omnidirectional Antenna Radome (1552C/1552I)
◦ 2 dBi (2.4 GHz), 4 dBi (5 GHz)
● External Dual-Band Omnidirectional Antennas (1552E/1552H)
◦ AIR-ANT2547V-N (4 dBi (2.4 GHz), 7 dBi (5 GHz))
● External Dual-Band Directional Antennas (1552E/1552H)
◦ AIR -ANT2588P3M-N= (8 dBi (2.4 GHz), 8 dBi (5 GHz))
● External Single Band Antennas (for 1552EU/1552CU)
◦ 2.4 GHz
◦ AIR-ANT2420V-N (2 dBi, omni)
◦ AIR-ANT2450V-N (5 dBi, omni)
◦ AIR-ANT2480V-N (8 dBi, omni)
◦ AIR-ANT2413P2M-N= (13 dBi, dual polarized patch)
◦ 5 GHz
◦ AIR-ANT5140V-N (4 dBi, omni)
◦ AIR-ANT5175V-N (7.5 dBi, omni)
◦ AIR-ANT5180V-N (8 dBi, omni)
◦ AIR-ANT5114P-N= (14 dBi, patch)
◦ AIR-ANT5114P2M-N= (14 dBi, dual polarized patch)
|
|||||||||
|
Powering Options |
1552E/1552EU ● 90-480 VAC, 50-60 Hz
● 12 VDC
● PoE with power injector
|
1552C/1552CU ● 40-90 VAC, 50-60 Hz, quasi-square wave, Power over Cable
● 12 VDC
|
1552H ● 100-240 VAC, 50-60 Hz
● 12 VDC
● PoE with power injector
|
1552I ● 110-277 VAC, 50-60 Hz
● 12 VDC
|
||||||
|
Warranty |
1 year |
|||||||||
