AIR-CAP1552E-A-K9
Артикул:
₴ 164,772.00

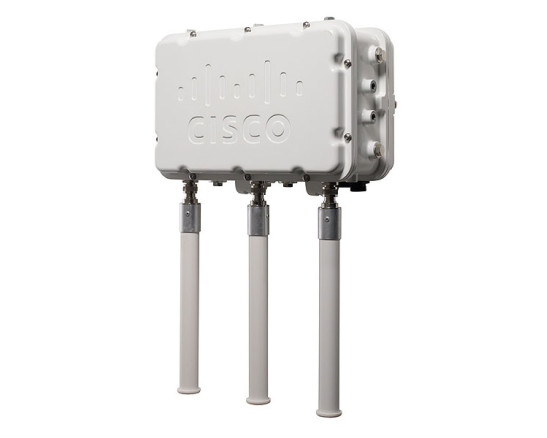

Cisco 1550 Access Point AIR-CAP1552E-A-K9 802.11N Outdoor Mesh Access Point, Ext. Ant., A Reg. Domain
The Cisco 1550 Access Point AIR-CAP1552E-A-K9 is a high-performance outdoor mesh access point designed for robust wireless networking. With support for 802.11N and external antennas, this model operates in the A regulatory domain, offering efficient and reliable connectivity in outdoor environments. Ideal for a variety of applications, the AIR-CAP1552E-A-K9 ensures seamless integration and superior performance for demanding requirements.
AIR-CAP1552E-A-K9 Specifications |
||||||||||
|
802.11n Version 2.0 (and Related) Capabilities |
● 2x3 Multiple-Input Multiple-Output (MIMO) with two spatial streams
● Legacy beamforming
● 20- and 40-MHz channels
● PHY data rates up to 300 Mbps
● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
● 802.11 Dynamic Frequency Selection (DFS)
● Cyclic Shift Diversity (CSD) support
|
|||||||||
|
DOCSIS 3.0 Capabilities |
DOCSIS and EuroDOCSIS 3.0 8x4 cable modem provides: ● Eight (8) bonded channels on the downstream with total throughput in excess of 300 Mbps
● Designed to meet DOCSIS 3.0 specifications as well as backward compatibility with existing DOCSIS 2.0, 1.1 and 1.0 networks
● Enhanced packet processing technology to maximize performance
● Downstream data rates in excess of 300 Mbps (without overhead)
● Upstream data rates up to 100 Mbps (without overhead)
Channel-bonded cable modems must be used in conjunction with a Cable Modem Termination System (CMTS) that supports channel bonding per the DOCSIS 3.0 specifications. When used with a non-channel-bonded CMTS, channel‑bonded cable modems function as conventional DOCSIS 2.0 cable modems. |
|||||||||
|
Maximum Number of Nonoverlapping Channels |
2.4 GHz ● 802.11b/g:
◦ 20 MHz: 3
● 802.11n:
◦ 20 MHz: 3
|
5 GHz ● 802.11a:
◦ 20 MHz: 19
● 802.11n:
◦ 20 MHz: 19
◦ 40 MHz: 11
|
||||||||
|
Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain. |
||||||||||
|
Maximum Transmit Power |
2.4 GHz ● 802.11b (CCK)
◦ 28 dBm with 2 antennas
● 802.11g (non HT duplicate mode)
◦ 28 dBm with 2 antennas
● 802.11n (HT20)
◦ 28 dBm with 2 antennas
|
5 GHz ● 802.11a
◦ 28 dBm with 2 antennas
● 802.11n non -HT duplicate (802.11a duplicate) mode
◦ 28 dBm with 2 antennas
● 802.11n (HT20)
◦ 27 dBm with 2 antennas
● 802.11n (HT40)
◦ 27 dBm with 2 antennas
|
||||||||
|
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details. |
||||||||||
|
Network Interface |
● 10/100/1000BASE-T Ethernet, autosensing (RJ-45)
● Fiber SFP (1552E/EU/H)
● DOCSIS/EuroDOCSIS 3.0 (8x4) Cable modem interface (1552C/CU)
|
|||||||||
|
Dimensions (W x L x H) |
1552C/1552I: 12.3 x 8.6 x 5.6 in. (31.2 x 22.9 x 14.2 cm) 1552E/EU/CU/H: 12.3 x 8.6 x 6.1 in. (31.2 x 22.9 x 16.3 cm) |
|||||||||
|
Weight |
1552E/EU: 17.3 lbs (7.8 kg) 1552C/CU: 14 lbs (6.4 kg) 1552H: 17.6 lbs (8 kg) 1552I: 14 lbs (6.4 kg) Battery backup: 1.5 lbs (0.7 kg) Pole mounting bracket: 6.1 lbs (2.8 kg) Cable strand mounting bracket: 1.3 lbs (0.6 kg) |
|||||||||
|
Environmental |
Operating temperature: -40 to 55°C (-40 to 131°F) plus Solar Loading Storage temperature: -50 to 85°C (-58 to 185°F) Wind resistance: ● Up to 100-MPH sustained winds
● Up to 165-MPH wind gusts
|
|||||||||
|
Environmental Ratings |
● IP67
● NEMA Type 4X
|
|||||||||
|
Antenna Gain |
● Integrated Dual Band Omnidirectional Antenna Radome (1552C/1552I)
◦ 2 dBi (2.4 GHz), 4 dBi (5 GHz)
● External Dual-Band Omnidirectional Antennas (1552E/1552H)
◦ AIR-ANT2547V-N (4 dBi (2.4 GHz), 7 dBi (5 GHz))
● External Dual-Band Directional Antennas (1552E/1552H)
◦ AIR -ANT2588P3M-N= (8 dBi (2.4 GHz), 8 dBi (5 GHz))
● External Single Band Antennas (for 1552EU/1552CU)
◦ 2.4 GHz
◦ AIR-ANT2420V-N (2 dBi, omni)
◦ AIR-ANT2450V-N (5 dBi, omni)
◦ AIR-ANT2480V-N (8 dBi, omni)
◦ AIR-ANT2413P2M-N= (13 dBi, dual polarized patch)
◦ 5 GHz
◦ AIR-ANT5140V-N (4 dBi, omni)
◦ AIR-ANT5175V-N (7.5 dBi, omni)
◦ AIR-ANT5180V-N (8 dBi, omni)
◦ AIR-ANT5114P-N= (14 dBi, patch)
◦ AIR-ANT5114P2M-N= (14 dBi, dual polarized patch)
|
|||||||||
|
Powering Options |
1552E/1552EU ● 90-480 VAC, 50-60 Hz
● 12 VDC
● PoE with power injector
|
1552C/1552CU ● 40-90 VAC, 50-60 Hz, quasi-square wave, Power over Cable
● 12 VDC
|
1552H ● 100-240 VAC, 50-60 Hz
● 12 VDC
● PoE with power injector
|
1552I ● 110-277 VAC, 50-60 Hz
● 12 VDC
|
||||||
|
Warranty |
1 year |
|||||||||
