AIR-ANT2524DG-R
Артикул:
₴ 2,553.00

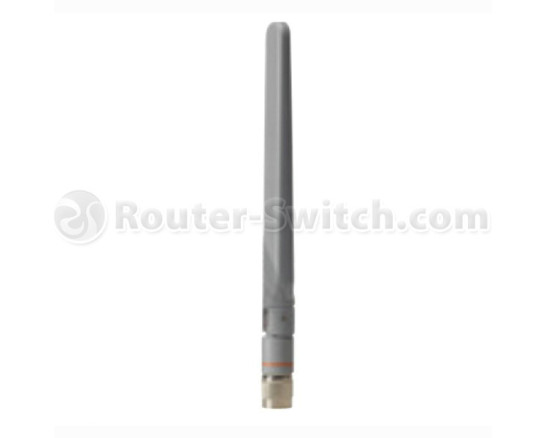

Cisco AIR-ANT2524DG-R 2.4 GHz 2 dBi/5 GHz 4 dBi Dipole Ant., Gray, RP-TNC
The Cisco AIR-ANT2524DG-R is a 2.4 GHz 2 dBi/5 GHz 4 dBi Dipole Antenna in gray color with RP-TNC connectors. This antenna is designed to enhance wireless network performance by providing better coverage and signal strength. Its dual-band capability enables it to operate on both 2.4 GHz and 5 GHz frequencies, making it versatile for various wireless applications.
| AIR-ANT2524DG-R Specification | |
|
Parameter |
Value |
|---|---|
|
Antenna type |
Dual-band dipole |
|
Operating frequency range |
2400 to 2500 MHz |
|
5150 to 5850 MHz |
|
|
Nominal input impedance |
50 Ohms |
|
VSWR |
Less than 2:1 |
|
Peak Gain @ 2.4. GHz |
2 dBi |
|
Peak Gain @ 5 GHz |
4 dBi |
|
Elevation plane 3dB beamwidth @2.4 GHz |
63 degrees |
|
Elevation plane 3dB beamwidth @ 5 GHz |
39 degrees |
|
Connector type |
RP-TNC plug |
|
Antenna length |
6.63 in. (168.5 mm) |
|
Antenna width |
0.83 in (21 mm) |
|
Radome length |
4.88 in. (124 mm) |
|
Weight |
1.3 oz |
|
Operating temperature |
–4° to 140°F(–20°C to 60°C) |
|
Storage temperature |
–40°F to 185°F(–40°C to 85°C) |
|
Environment |
Indoor, office |
