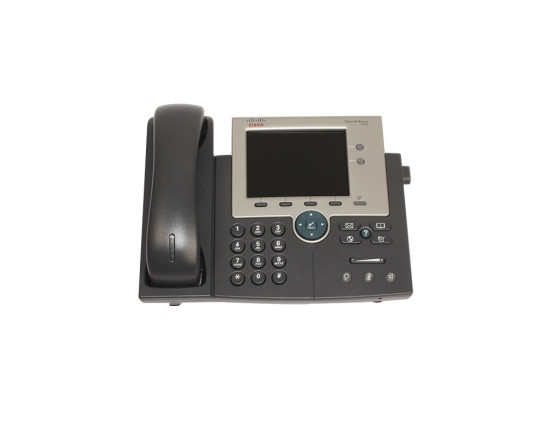

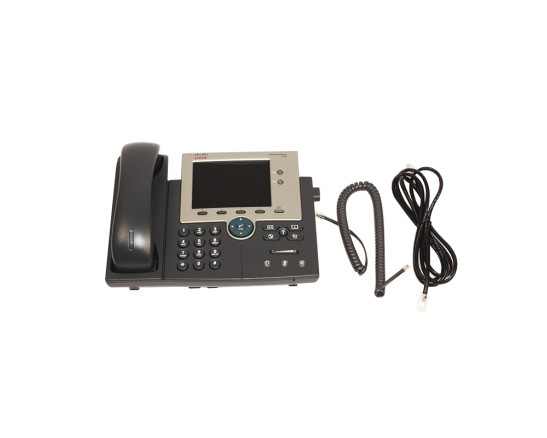

CP-7945G

CP-7945G Specification

Dimensions (H x W x D)

8.2 x 10.5 x 6 in. (20.32 x 26.67 x 15.24 cm)

Weight

3.5 lb (1.6 kg)

Phone-Casing Composition

Acrylonitrile butadiene styrene (ABS) plastic in textured dark gray color with silver bezel

Power

Supports IEEE 802.3af PoE (Class 3). 48VDC is required; it can be supplied locally at the desktop using an optional AC-to-DC power supply (part number CP-PWR-CUBE-3=) or power injector (CP-PWR-INJ=). Local power options require a corresponding AC country cord.

Phone Software Requirements

Supported in 8.3(2) and greater

Call Control Compatibility

Supported in Cisco Unified Communications Manager Versions 4.1(3)sr5b, 4.2(3)sr2b, 4.3(1), 5.1.1(b), 5.1(2), 6.0(1) and greater

Supported in Cisco Unified Communications Express and SRST Version 4.1

Signaling Protocols

Skinny Client Control Protocol (SCCP) and Session Initiation Protocol (SIP) with Cisco call control

Operating Temperature

32 to 104°F (0 to 40°C)

Relative Humidity

10 to 95% (noncondensing)

Storage Temperature

14 to 140°F (-10 to 60°C)
