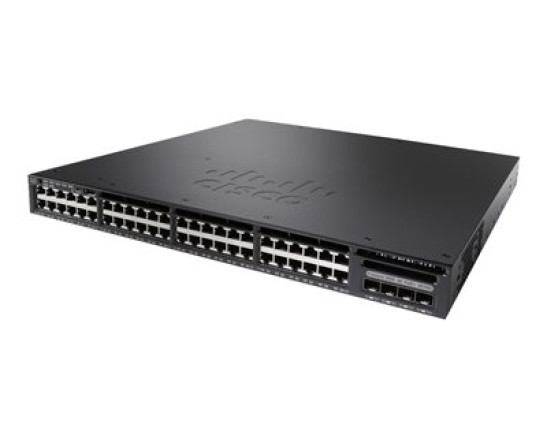

WS-C3650-48FD-S
Артикул:
₴ 552,138.00
Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 1025WAC power supply, 1 RU, IP Base feature set
Cisco Catalyst WS-C3650-48FD-S is the next generation of enterprise-level stable access layer switch and integrates with 48 POE+ Ethernet ports and 2 x 1G SFP, 2 x 10G SFP+ or 4 x 1G uplink ports in IP base feature set.
WS-C3650-48FD-S Specifications |
|
|
Switching capacity |
176 Gbps on 48-port models (non-multigigabit models) 92 Gbps on 24-port models (non-multigigabit models) 254 Gbps on 24-port Multigigabit models with 2x10G uplink 272 Gbps on 24-port Multigigabit models with 4x10G uplink 392 Gbps on 48-port Multigigabit models with 4x10G uplink 472 Gbps on 48-port Multigigabit models with 8x10G uplink 472 Gbps on 48-port Multigigabit models with 2x40G uplink |
|
Stacking bandwidth |
160 Gbps |
|
Total number of MAC addresses |
32,000 |
|
Total number of IPv4 routes (ARP plus learned routes) |
24,000 |
|
FNF entries |
48,000 flow on 48-port models 24,000 flows on 24-port models |
|
DRAM |
4 GB |
|
Flash |
2 GB (non-Multigigabit models) and 4GB (Multigigabit models) |
|
VLAN IDs |
4,094 |
|
Total switched virtual interfaces (SVIs) |
1,000 |
|
Jumbo frame |
9198 bytes |
|
Total routed ports per 3650 stack |
208 |
|
Number of access points per switch/stack |
25 |
|
Number of wireless clients per switch/stack |
1000 |
|
Total number of WLANs per switch |
64 |
|
Wireless bandwidth per switch |
Up to 40 Gbps on 48-port models Up to 20 Gbps on 24-port models |
|
Supported Aironet access point series |
3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
|
Forwarding Rate |
104.16 Mpps |
|
Dimensions (H x W x D) |
1.73 x 17.5 x 19.125 Inches |
|
Weight |
17.75 Pounds |
|
MTBF Hours |
227,490 |
