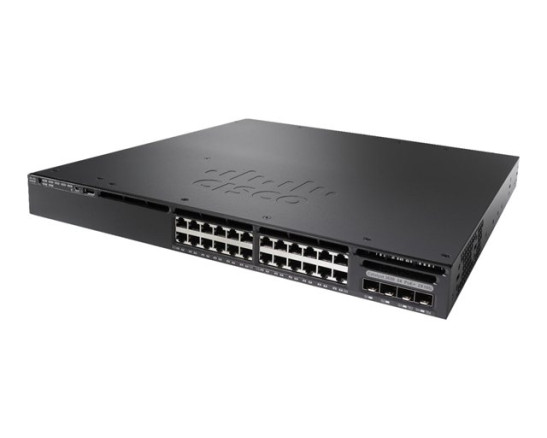

WS-C3650-24PD-E

WS-C3650-24PD-E Specifications

Switching capacity

176 Gbps on 48-port models (non-multigigabit models)

92 Gbps on 24-port models (non-multigigabit models)

254 Gbps on 24-port Multigigabit models with 2x10G uplink

272 Gbps on 24-port Multigigabit models with 4x10G uplink

392 Gbps on 48-port Multigigabit models with 4x10G uplink

472 Gbps on 48-port Multigigabit models with 8x10G uplink

472 Gbps on 48-port Multigigabit models with 2x40G uplink

Stacking bandwidth

160 Gbps

Total number of MAC addresses

32,000

Total number of IPv4 routes (ARP plus learned routes)

24,000

FNF entries

48,000 flow on 48-port models

24,000 flows on 24-port models

DRAM

4 GB

Flash

2 GB (non-Multigigabit models) and 4GB (Multigigabit models)

VLAN IDs

4,094

Total switched virtual interfaces (SVIs)

1,000

Jumbo frame

9198 bytes

Total routed ports per 3650 stack

208

Number of access points per switch/stack

25

Number of wireless clients per switch/stack

1000

Total number of WLANs per switch

64

Wireless bandwidth per switch

Up to 40 Gbps on 48-port models

Up to 20 Gbps on 24-port models

Supported Aironet access point series

3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040

Forwarding Rate

68.45 Mpps

Dimensions (H x W x D)

1.73 x 17.5 x 17.625 Inches

Weight

16.00 Pounds

MTBF Hours

528,280
