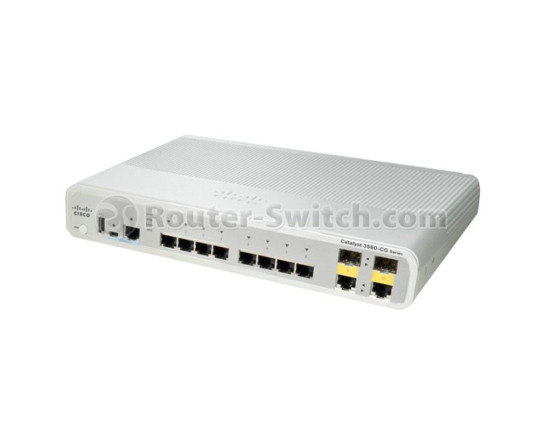

WS-C3560CG-8TC-S

Performance

Forwarding Bandwidth

10 Gbps

Flash memory

64 MB

Memory DRAM

128 MB

Max VLANs

1005

VLAN IDs

4000

Maximum transmission unit (MTU)

Up to 9000 bytes

Jumbo frames

9018 bytes

Connectors and cabling

Cisco Catalyst 3560-C and 2960-C with SFP-based ports:

●  10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling

●  100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling

●  1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

●  1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

●  1000BASE-SX -LX/LH, -ZX, -BX, -T*, -FX*, and CWDM SFP-based ports: LC fiber connectors (single/multimode fiber)

●  100BASE-LX, -BX, -FX: SFP-based ports: LC fiber connectors (single/multimode fiber)

*GLC-T and GLC-GE-100FX are not supported

Power connectors

●  Customers can provide power to a switch by using the internal power supply. The connector is located at the back of the switch. The internal power supply is an autoranging unit (3560CPD-8PT-S, 2960CPD-8TT-L, 2960CPD-8PT-L do not require a power supply).

●  The internal power supply supports input voltages between 100 and 240VAC.

●  Use the supplied AC power cord to connect the AC power connector to an AC power outlet.

Note: The Cisco Catalyst 3560CPD-8PT-S, 2960CPD-8PT-L and 2960CPD-8TT-L have an option for an external power adapter if desired.

Indicators

●  Per-port status: Link integrity, disabled, activity, speed, full-duplex

●  System status: System, RPS, link status, link duplex, link speed

Dimensions
(H x W x D)

1.75x10.6x8.4 Inches

Weight

3.0 Pounds

Environmental ranges

Operating* temperature up to 5000 ft (1524 m)

-5°C to +45°C**

+23°F to +113°F

Operating* temperature up to 10,000 ft (3048 m)

-5°C to +45°C

+23°F to +113°F

Storage temperature up to 15,000 ft (4572 m)

-25°C to +70°C

-13°F to +158°F

Operating altitude

Up to 3048 m

Up to 10,000 ft

Storage altitude

Up to 4000 m

Up to 15,000 ft

Operating relative humidity

5% to 95% noncondensing

Storage relative humidity

5% to 95% noncondensing

* Minimum ambient temperature for cold start is 0°C (+32°F).

** FE SKUs only GE SKU have a max operation temp of 40C.

Acoustic noise

0dB (fanless)

Mean time between failure (MTBF)

488,549
