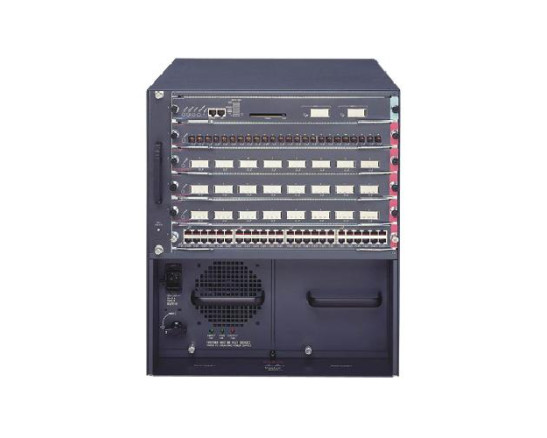

VS-C6506E-S720-10G (USED)
Артикул:
₴ 127,098.00
Cisco Catalyst switch Chassis+Fan Tray+Sup720-10G; IP Base ONLY incl. VSS
VS-C6506E-S720-10G Specification | |
| General | |
| Device Type | Switch - 2 ports - with Cisco Virtual Switching Supervisor Engine 720 3C, Fan Tray |
| Enclosure Type | Rack-mountable 12U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 2 x X2 + 2 x SFP + 1 x 10/100/1000 |
| Routing Protocol | OSPF, RIP, BGP-4, IS-IS, HSRP, IGMP, VRRP, PIM-SM, PIM-DM, GRE, Bidirectional PIM |
| Features | NAT support, MPLS support, IGMP snooping, IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), MPLS VPN |
| Compliant Standards | IEEE 802.1x |
| RAM | 2 GB |
| Flash Memory | 1 GB flash |
| Status Indicators | Port status, power, link OK, system, active |
| Expansion / Connectivity | |
| Interfaces | 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x console - RJ-45 management ¦ 1 x USB Type A ¦ 1 x USB Type B ¦ 2 x SFP (mini-GBIC) ¦ 2 x X2 |
| Expansion Slots | CompactFlash Card - type II ¦ 6 (total) / 5 (free) x expansion slot |
| Installed Modules Qty (Max) | 1 (installed) / 6 (max) |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 (max) |
| Power Redundancy | Yes |
| Miscellaneous | |
| Compliant Standards | NEBS level 3, FCC Class A certified, VCCI, EN 60950, EN55022, UL 1950, IEC 825-1/EN 60825-1 class 1, IEC 60950, EN55024, CISPR 22, CSA 22.2 No. 60950, ACA TS001, AS/NZS 3260, FCC Part 15, AS/NZS 3548 |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 18.1 in |
| Height | 19.2 in |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% |
