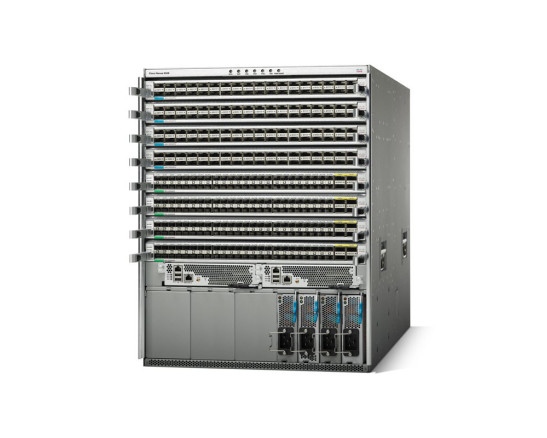

N9K-C9508

N9K-C9508 Specification

Chassis

●  Up to 8 line cards

●  Up to 8 power supplies

●  Up to 6 fabric modules

●  Up to 2 system controllers

●  Up to 2 supervisors

●  Up to 3 fan trays

Physical (H x W x D)

22.70 x 17.50 x 31.76 in. (57.78 x 44.50 x 80.67 cm)

Weight (chassis)

150 lb (68.2 kg)

Operating temperature

32 to 104°F (0 to 40°C)

Nonoperating (storage) temperature

-40 to 158°F (-40 to 70°C)

Humidity

5 to 95% (noncondensing)

Altitude

0 to 13,123 ft (0 to 4000m)

MTBF (Hours)

Chassis: 928,910

Regulatory compliance

Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC

Safety

●  UL 60950-1 Second Edition

●  CAN/CSA-C22.2 No. 60950-1 Second Edition

●  EN 60950-1 Second Edition

●  IEC 60950-1 Second Edition

●  AS/NZS 60950-1

●  GB4943

EMC: Emissions

●  47CFR Part 15 (CFR 47) Class A

●  AS/NZS CISPR22 Class A

●  CISPR22 Class A

●  EN55022 Class A

●  ICES003 Class A

●  VCCI Class A

●  EN61000-3-2

●  EN61000-3-3

●  KN22 Class A

●  CNS13438 Class A

EMC: Immunity

●  EN55024

●  CISPR24

●  EN300386

●  KN 61000-4 series

RoHS

The product is RoHS-6 compliant with exceptions for leaded-ball grid-array (BGA) balls and lead press-fit connectors.
