N3K-C36180YC-R
Артикул:
₴ 1,416,225.00

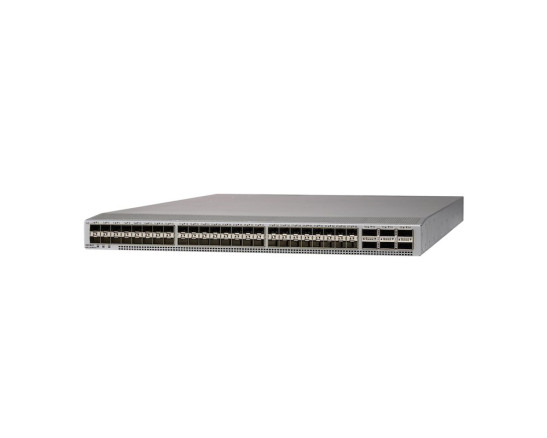

Nexus 36180YC-R, 48p 10/25G and 6p QSFP28
The Cisco Nexus 36180YC-R is a high-performance switch designed to meet the demanding requirements of modern data centers. Offering 48 ports that support 10/25 Gigabit Ethernet and 6 ports with QSFP28, it's engineered to deliver top-tier performance, flexibility, and scalability for various networking environments. Whether upgrading an existing network infrastructure or establishing a new one, this switch ensures robust and reliable connectivity.
N3K-C36180YC-R Specifications |
||
|
Physical |
● 1RU fixed-form-factor switch
● 48 SFP ports; each supports native 25, 10, or 1 Gigabit Ethernet mode
● 6 QSFP28 ports; each supports native 100 Gigabit Ethernet and 4 x 25 Gigabit Ethernet modes
● 2 redundant power supplies
● Management, console, and USB flash-memory ports
|
|
|
Performance |
● 1.8-Tbps switching capacity
● Forwarding rate of up to 1.67 bpps
● Line-rate traffic throughput (both Layer 2 and 3) on all ports, for packet size bigger than 115B
● Configurable Maximum Transmission Unit (MTU) of up to 9216 bytes (jumbo frames)
|
|
|
Hardware tables and scalability* |
Number of MAC addresses |
750,000 |
|
Number of VLANS |
4096 |
|
|
Number of spanning-tree instances |
● Rapid Spanning Tree Protocol (RSTP): 512
● Multiple Spanning Tree Protocol (MSTP): 64
|
|
|
Number of ACL entries |
● 7000 ingress
|
|
|
Routing table* |
● Maximum number of Longest-Prefix-Match (LPM) routes: 256,000
● Maximum number of IP host entries: 750,000
● Maximum number of MAC address entries: 750,000
● Maximum number of Layer 3 multicast entries: 128,000
|
|
|
Number of EtherChannels |
256 (with vPC) |
|
|
Number of ports per EtherChannel |
32 |
|
|
Buffer size |
8 GB |
|
|
System memory |
32 GB |
|
|
Boot-flash memory |
128 GB |
|
|
Frequency |
50 to 60 Hz |
|
|
Power |
Power-supply types |
AC (forward and reverse airflow) DC (port-side exhaust)** |
|
Typical operating power |
383 Watts(W) |
|
|
Maximum power |
771W |
|
|
AC Power-Supply Units (PSUs) ● Input voltage
● Frequency
Efficiency |
● 100 to 240 VAC
● 50 to 60 Hz
89 to 91% at 220V |
|
|
● Power-supply efficiency
|
● 89 to 91% at 220V
|
|
|
Maximum heat dissipation |
2,631MBTU |
|
|
● Forward and reverse airflow schemes
◦ Forward airflow: Port-side exhaust (air enters through fan tray and power supplies and exits through ports) ◦ Reverse airflow: Port-side intake (air enters through ports and exits through fan tray and power supplies) Hot-swappable (must swap within 1 minute) |
||
|
Cooling |
Measured sound power (maximum) ● Fan speed: 40% duty cycle
● Fan speed: 70% duty cycle
● Fan speed: 100% duty cycle
|
|
|
Sound |
Dimensions |
1.72 x 17.3 x 26.85 in. (4.4 x 43.9 x 68.2 cm) |
|
Environment |
27.1 lb (12.3 kg) |
|
|
Temperature: Operating |
32 to 104°F (0 to 40°C) |
|
|
Temperature: Storage |
–40 to 158°F (–40 to 70°C) |
|
|
Relative humidity: Operating |
● 10 to 85% noncondensing
● Up to 5 days at maximum (85%) humidity
Recommend American Society of Heating, Refrigeration, and Air-Conditioning Engineers (ASHRAE) data center environment |
|
|
Relative humidity: Storage |
● 5 to 95% noncondensing
|
|
|
Altitude: Operating |
Up to 13,123 ft. |
|
|
Altitude: Non-Operating |
Up to 16,000 ft. |
|
