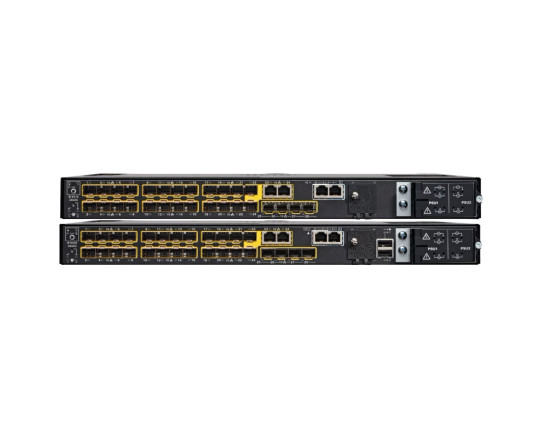

IE-9310-26S2C-E
Артикул:
₴ 307,602.00
IE9300 w/ 24 Ports GE SFP Downlinks & 4 Ports GE SFP uplinks
Cisco IE-9310-26S2C-E is a versatile industrial switch designed to meet the rigorous demands of modern networks. This switch offers exceptional advantages such as robust performance, high scalability, and secure transmission. It is ideal for engineers and procurement professionals in industries like manufacturing, transportation, and energy, providing reliable connectivity for complex environments.
IE-9310-26S2C-E Specifications |
|
| Total ports | 28 |
| Downlinks | 22 ports 100/1000M SFP and 2 ports Dual-Media (100/1000M SFP or 10/100/1000M RJ45) |
|
Uplinks (SFP/SFP+) |
4 ports 1000M |
| Software license (default) | Network Essentials |
| Hardware |
4-GB DRAM 8-GB onboard flash memory |
| Removable storage | USB SD card |
| Alarms |
4 dry-contact alarm inputs 1 dry-contact Form-C relay alarm output |
| Console ports | 1 RS-232 (via RJ-45), 1 Micro USB |
| Power inputs | Dual AC/DC power inputs |
| Dimensions (H x W x D) | 1.72 x 17.5 x 14.0 in. with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H |
| Weight |
12.2 lb (5.53 kg) |
| Mounting | Rack mount |
| Power consumption | 61W |
| Forwarding rate | 28 Gbps (line rate/nonblocking) |
| Switching bandwidth | 56 Gbps (switching bandwidth is full-duplex capacity) |
| Number of queues / port | 8 egress |
| Unicast MAC addresses | 16,000 |
| Internet Group Management Protocol (IGMP) multicast groups | 1000 |
| VLANs | 1024 |
| IPv4 indirect routes | 3044 |
| IPv6 indirect routes | 1522 |
| Spanning Tree Protocol (STP) instances | 128 |
| Access Control List (ACL) entries (port ACL [PACL], VLAN ACL [VACL], router ACL [RACL]) | 1408 |
| DRAM | 4 GB |
| Flash (user accessible) | 2.5 GB |
| SD card capacity | 4 GB |
| SD Access Fabric Edge Support | Yes (32 VNs) |
| SGT/DGT policies | 2000 |
| IPv4 to SGT binding | 10000 |
| Maximum SVIs | 984 |
| SXP Sessions | 200 |
