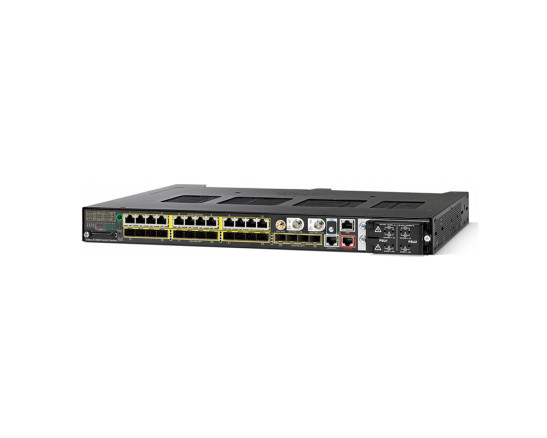

IE-5000-16S12P

IE-5000-16S12P Specification

Total ports

28

Uplinks

4 SFP/SFP+ (1G)

SFP fiber ports (S)

12 (FE/GE)

Copper 10/100/1000 PoE/PoE+ ports

12 (10/100/1000M)

Default software

LAN Base

Dimensions (H x W x D)

●  1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm), 1 RU (rack unit) height with PWR-RGD-AC-DC-H

 / PWR-RGD-LOW-DC-H

●  1.75 x 17.5 x 15.18 in. (4.45 x 44.5 x  38.56 cm),  1 RU (rack unit) height with PWR-RGD-AC-DC-250

Weight

●  Without Power Supply: 13.7 lb (6.21 kg)

●  PWR-RGD-AC-DC-H: 2.55 lb (1.16kg)

●  PWR-RGD-LOW-DC-H-H: 2.5 lb (1.13kg)

●  PWR-RGD-AC-DC-250: 3.1 lb (1.4 kg)

Hardware

●  1-GB DRAM

●  256-MB onboard flash memory

●  1-GB removable SD flash memory card

●  Mini-USB connector

●  RJ-45 traditional console connector

●  GPS antenna interface (needs future software support) - GPS antenna input

●  Analog Timing I/O interface (needs future software support) - For analog IRIG support

●  Digital Timing I/O interface (needs future software support) - For digital timing such as IRIG-B TTL

●  TOD interface (needs future software support) - Cisco Time-of-Day port to provide RS422 1 PPS, IRIG-B TTL or IOS-8601 and NMEA Time-of-Day support

Alarm

●  Alarm I/O: four alarm inputs to detect dry contact open or closed, one Form C alarm output relay

Power consumption

●  Maximum of 90W not including PoE consumption

Accessories

●  SD-IE-1GB= - Spare SD card

Forwarding bandwidth

28Gbps (IE-5000-16S12P) or 64Gbps (IE-5000-12S12P-10G) - Line rate/Non-blocking

Switching bandwidth

56Gbps (IE-5000-16S12P) or 128Gbps (IE-5000-12S12P-10G)

Forwarding rate

41.67Mpps (IE-5000-16S12P) or 95.238Mpps (IE-5000-12S12P-10G) with 64 byte packets (Line rate)

Number of queues

4 egress

Unicast MAC addresses

16,000

IGMP multicast groups

1,000

Number of VLANs

1,005

IPv4 MAC security ACEs

1,000 with default TCAM Template

NAT translation

Bidirectional, 256 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly
