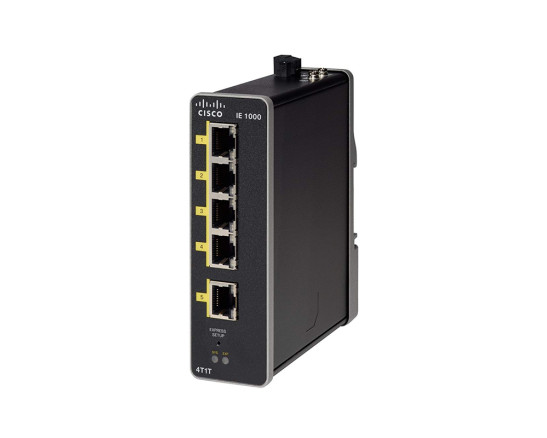

IE-1000-4T1T-LM

IE-1000-4T1T-LM Specification

Forwarding Bandwidth

• Max:2.8Gbps

Switching Bandwidth

• Max:5.6Gbps

Hardware

• DRAM: 128 MB DDR2 without ECC

• Onboard flash memory: 160 MB

Alarm

• Alarm I/O: output connector on top panel of 4P2S and 8P2S, 1.0A@24VDC or 0.5A@48VDC

Power consumption

4.2W

Connectors and cabling

• 100BASE-FX MMF (2 km)—TBD with engineer input

• 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

Dimensions (H x W x D)including DIN rail

5.0”H x 1.5”W x 4.5”D (127mm H x 38mm W x 115mm D)

Software features

LLDP, Cisco CDP aware, MSTP, STP Portfast, ICMP Vlans, static IP, Trust Ingress DSCP, COS, Priority Port, port - security, IGMP querier, DHCP server SNMP v2/v3, SNMP traps, syslog, IGMP snooping, DHCP snooping, BPDU guard, Etherchannel, Alarms, PoE capability, Smartport Macro, SPAN/Port Mirroring, Strom Control, EtherNet/IP (EDS)

Safety Certifications

• UL/CSA 60950-1

• EN 60950-1

• CB to IEC 60950-1 (with country deviations)

• NOM to NOM-019-SCF1 (through partners and distributors)

• UL/CSA/IEC/EN 61010-2-201

• CE Marking

Hazardous Locations

• ANSI/ISA 12.12.01 (Class1, Div2 A-D)

• EN 60079-0, -15 ATEX certificate (Class 1, Zone2 A-D)

• IEC 60079-0, 15 (report only)

• UL 60079-0, 15

• CAN/CSA C22.2 No. 60079-0, -15

* Cabinet enclosure required

EMC Emissions and Immunity Compliance

• FCC 47 CFR Part 15 Class A

• EN 55022/CISPR 22 Class A

• EN 55016-1-1, -1-4, -2-3 Class AVCCI Class A

• RoHS compliance

• AS/NZS CISPR 22 Class A, AS/NZS CISPR 24

• CISPR11 Class A, CISPR22 Class A

• ICES 003 Class A

• KCC Marking (Korea)

• CE Marking

• RCM Marking (Australia/New Zealand)

• EAC Marking (Eurasian Conformity)

• Anatel (Brazil)

• China NAL

• IEC/EN/EN61000-4-2 (Electro Static Discharge), 8kV air/6kV contact

• IEC/EN 61000-4-3 (Radiated Immunity, 10 V/m 80-2000MHz, 3V/m 2000-2700MHz)

• IEC/EN 61000-4-4 (Fast Transients - 2kV DC power, 2kV data line, 4kv earth)

• IEC/EN 61000-4-5 (Surge 2 kV/1 kV DC power, 2 kV shielded and unshielded data line)

• IEC/EN 61000-4-6 (Conducted Immunity, 10 V/emf 0.15-80MHz)

• IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity 30A/m 60 sec, 300A/m 3 sec)

• IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity 300A/m)

• IEC/EN 61000-4-29 (Voltage Dips Immunity)

Shock and Vibration

• IEC 60068-2-27 (Operational Shock: 30G 11ms, half sine)

• IEC 60068-2-27 (Non-Operational Shock 65-80G, trapezoidal)

• IEC 60068-2-6, IEC 60068-2-64 (Operational Vibration)

• EC 60068-2-6, IEC 60068-2-64, IEC 60068-2-47 (Non-operational Vibration)

Industry Standard

• IEC/EN 61000-6-1 (Immunity for Light Industrial Environments)

• IEC/EN 61000-6-2 (Immunity for Industrial Environments)

• IEC/EN 61000-6-4 (Emissions for Industrial Environments)

• EN 61131-2 (PLC Zone A & B, EMC/EMI, environmental, mechanical)

• EN61326-1 (Industrial Controls)

• Marine –TAC (Temp-A, Humid-B, Vib-A, EMC-A, Enc-A)

• EN 50581 (RoHS)

• China RoHS

• EU WEEE

• NEMA TS-2 (EMC, environmental, mechanical)

• IP30

Humidity

• IEC 60068 -2-3

• IEC 60068-2-30 (Test Db)

• Relative humidity: 5% to 95% non-condensing

Operating Temperature

• -20 °C to 70 °C (vented enclosure operating)

• -20 °C to 60 °C (sealed enclosure operating)

• -16 °C to 75 °C (fan or blower-equipped enclosure operating)•Operational altitude: Up to 13.8k ft

• IEC 60068-2-1

• IEC 60068-2-2

• IEC 60068-2-56

• -40 C to +85 C (storage temperature)

• IEC 60068-2-14 (Test Nb)

• Storage altitude: Up to 15,000 ft

Mean Time Between Failure (MTBF)

• Meantime between failure: 374,052 hours (42.7 years)

Warranty

• Five-year limited warranty on all IE-1000 hardware PIDs and all IE power supplies defined in Table 2 previously. See the following link for details on warranty
