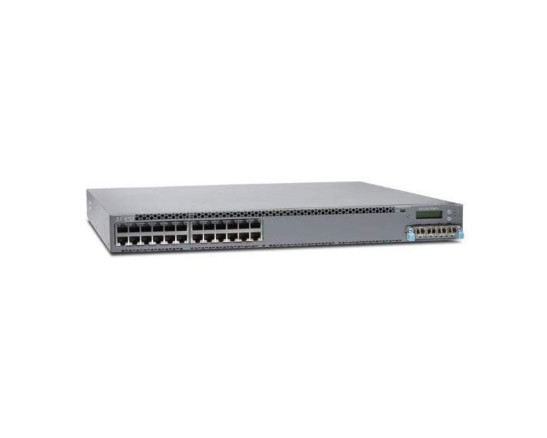

EX4300-24P

EX4300-24P Specification

Description

Juniper EX4300 switch with 24-port 10/100/1000BASE-T PoE-plus + 715 W AC PS (provides 565 W PoE+ power) (QSFP+ DAC for Virtual Chassis ordered separately)

Form factor

Fixed platform
Virtual Chassis configuration consisting of 10 switches

Dimensions (W x H x D)

17.4 x 1.7 x 16.4 in (44.2 x 4.3 x 41.7 cm)
1 rack unit

Backplane speed

320 Gbps (Virtual Chassis)

Data rate

448 Gbps

Throughput

333 Mpps (wire speed)

40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities

4 per switch
Up to 20 in Virtual Chassis configuration (assuming 2 ports per switch are used for forming Virtual Chassis)

100GBASE C form-factor pluggable transceiver (CFP) port densities

N/A

Resiliency

Internal, hot-swappable redundant power supply; field-replaceable fans; graceful Routing Engine switchover (GRES) in Virtual Chassis configuration

Operating system

Junos OS

Traffic monitoring

sFlow

Quality-of-service (QoS) queues/port

12

MAC addresses

64,000

Jumbo frames

9216 bytes

IPv4 unicast/multicast routes

32,000/8000

IPv6 unicast/multicast routes

18,000/4000

Number of VLANs

4093

ARP entries

64,000
