EX2300-48P
Артикул:
₴ 105,363.00
EX2300 48-port 10/100/1000BaseT PoE+, 4 x 1/10G SFP/SFP+ (optics sold separately)

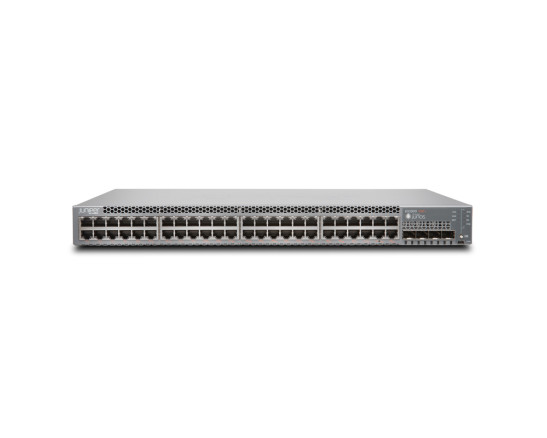

Figure 1 shows the appearance of EX2300-48P.
SKU
EX2300-48P
Backplane speed
80 Gbps
Data rate
176 Gbps
Throughput
130 Mpps (wire speed)
Ports
48-port 10/100/1000BASE-T PoE+, 4 x 1/10GbE SFP/SFP+ (optics sold separately)
Dimensions (W x H x D)
17.4 x 1.75 x 12.2 in (44.19 x 4.45 x 30.98 cm)
1 rack unit
Figure 2 shows the front panel of EX2300-48P.
Figure 3 shows the back panel of EX2300-48P.
SKU
EX2300-48P
Backplane speed
80 Gbps
80 Gbps
80 Gbps
Data rate
128 Gbps
128 Gbps
176 Gbps
Throughput
95 Mpps (wire speed)
95 Mpps (wire speed)
130 Mpps (wire speed)
Ports
24-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+ (optics sold separately)
24-port 10/100/1000BASE-T PoE+, 4 x 1/10GbE SFP/SFP+ (optics sold separately)
48-port 10/100/1000BASE-T PoE+, 4 x 1/10GbE SFP/SFP+ (optics sold separately)
Dimensions (W x H x D)
17.4 x 1.75 x 10.2 in (44.19 x 4.45 x 25.9 cm)
1 rack unit
17.4 x 1.75 x 10.2 in (44.19 x 4.45 x 25.9 cm)
1 rack unit
17.4 x 1.75 x 12.2 in (44.19 x 4.45 x 30.98 cm)
1 rack unit
EX2300-48P Specification |
|
|
Form factor |
Fixed platform |
|
Ports |
48-port 10/100/1000BASE-T PoE+, 4 x 1/10GbE SFP/SFP+ (optics sold separately) |
|
Dimensions (W x H x D) |
17.4 x 1.75 x 12.2 in (44.19 x 4.45 x 30.98 cm) |
|
Backplane speed |
80 Gbps |
|
Data rate |
176 Gbps |
|
Throughput |
130 Mpps (wire speed) |
|
10/100/1000BASE-T port densities |
N/A |
|
10GBASE-X port densities |
N/A |
|
40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities |
N/A |
|
100GBASE C form-factor pluggable transceiver (CFP) port densities |
N/A |
|
Resiliency |
Integrated power supply and fans |
|
Operating system |
Junos OS |
|
Traffic monitoring |
sFlow |
|
Quality-of-service (QoS) queues/port |
8 |
|
MAC addresses |
16,000 |
|
Jumbo frames |
9216 bytes |
|
IPv4 unicast / multicast routes |
4096 / 2048 |
|
IPv6 unicast / multicast routes |
2048 / 1024 |
|
Number of VLANs |
4093 |
|
ARP entries |
1500 |
