HPE DL380 Gen10 8SFF CTO P19720-B21
Артикул:
₴ 172,638.00
HPE DL380 Gen10 8SFF NC CTO Svr S-ERVER
Table 1 shows the quick spec of DL380 Gen10 8-SFF NC CTO server.
Part Number
P19720-B21
Description
HPE ProLiant DL380 Gen10 8-SFF NC CTO server
Form Factor
2U rack
Processors
Up to 2 Intel Xeon processors
Chipset
Intel C621 Chipset
Memory Type
HPE DDR4 SmartMemory,
Registered (RDIMM), Load Reduced (LRDIMM)
Memory Maximum capacity
LRDIMM :3.0 TB, 24 x 128 GB LRDIMM @ 2933 MT/s
RDIMM: 1.54 TB, 24 x 64 GB RDIMM @ 2933 MT/s
Intel Optane Persistent Memory for HPE: 6.0 TB, 12 X 512 GB Memory Modules @ 2666 MT/s
HPE NVDIMMs: 192 GB, 12 x 16 GB NVDIMM @ 2666 MT/s
Product Details

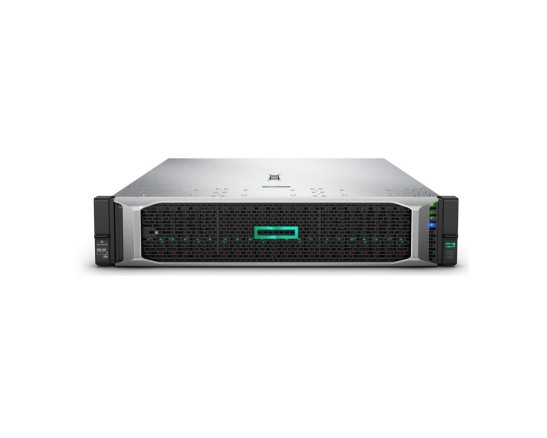

Figure 1 shows the Front View – SFF chassis with optional Universal Media bay with optical and 2 NVME plus 16 NVMe shown.
Note:
1
Quick removal access panel
2
Optional Universal Media bay. 2 USB 2.0 and Display port standard (8 SFF bay or 6 SFF+2NVMe or 8NVMe optional)
3
Optional Optical drive. Requires Universal Media bay
4
Optional USB 2.0 (via Universal Media Bay)
5
Drive Bay 2. NVMe shown (8 SFF, 6SFF+2NVMe or 8 NVMe PCIe SSD optional)
6
8 SFF Drive Cage Bay
7
Serial label pull tag
8
Power On/Standby button and system power LED button
9
Health LED
10
NIC status
11
UID button
12
iLO Front Service Port
13
USB 3.0
14
Box 3
15
Box 2
16
Box 1
17
Optional 2 SFF HDD, requires optional Universal Media bay
18
Optional USB 2.0 (via Universal Media Bay)
19
Optional front display port (Via Universal Media Bay)

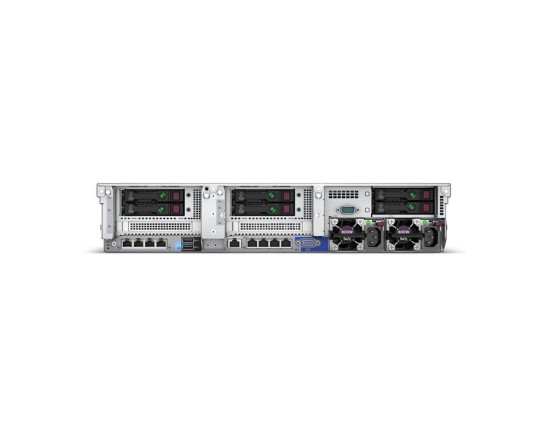

Figure 2 shows the back view.
Note:
1
Primary Riser. PCI Slots (Slots 1-3 top to bottom, riser shipped standard, not shown), optional 2SFF rear drives
2
Secondary Riser. PCI Slots (Slots 4-6top to bottom, not shown, requires second riser card, and second processor). Showing optional 2 SFF rear
3
Optional serial port
4
Tertiary Riser (Slots 7-8). Optional rear 2 SFF HDD (supported in 24 SFF or 12 LFF front end)
5
Power supply Power connection
6
Power supply Power LED
7
HPE Flexible Slot Power Supply bay 1 (800W shown)
8
Power supply Power connection
9
Power supply Power LED
10
HPE Flexible Slot Power Supply bay 2 (800W shown)
11
VGA connector
12
Embedded 4 x 1GbE Network Adapter
13
Dedicated iLO management port
14
USB connectors 3.0 (2)
15
Unit ID LED
16
Optional FlexibleLOM ports (Shown: 4 x 1GbE)
P19720-B21 Specification |
|
|
Description |
HPE ProLiant DL380 Gen10 8-SFF NC CTO server |
|
Processors |
Up to 2 Intel Xeon Scalable 8100/8200 Series Or Intel Xeon Scalable 6100/6200 Series Intel Xeon Scalable 5100/5200 Series Intel Xeon Scalable 4100/4200 Series Intel Xeon Scalable 3100/3200 Series 4 to 28 cores, depending on models |
|
Chipset |
Intel C621 Chipset |
|
Memory Type |
HPE DDR4 SmartMemory, Registered (RDIMM), Load Reduced (LRDIMM) |
|
Memory Maximum capacity |
LRDIMM :3.0 TB, 24 x 128 GB LRDIMM @ 2933 MT/s RDIMM: 1.54 TB, 24 x 64 GB RDIMM @ 2933 MT/s Intel Optane Persistent Memory for HPE: 6.0 TB, 12 X 512 GB Memory Modules @ 2666 MT/s HPE NVDIMMs: 192 GB, 12 x 16 GB NVDIMM @ 2666 MT/s |
|
Storage |
1 HPE Smart Array S100i and/or 1 HPE Smart Array P408i-a and/or 1 HPE Smart Array P816i-a and/or 1 HPE Smart Array E208i-a, depending on model |
|
Dimensions |
SFF Drives: 8.73 x 44.54 x 67.94 cm / 3.44 x 17.54 x 26.75 in |
|
Rated Line Voltage |
For 1600W (Platinum): 200-240 VAC For 800W (Titanium) Power Supply: 200-240 VAC For 800W (Platinum): 100-240 VAC For 800W (Universal) Power Supply: 200-277 VAC For 800W (-48VDC): -40 Vdc to -72 Vdc 500W (Platinum) Power Supply: 100-240 VAC For 1600W (-48VDC): -40 to -72 |
|
Power Supplies |
Up to 2 HPE Flexible Slot Power Supplies |
|
Form Factor |
2U rack |
