869854-B21

HPE 869854-B21 Specification

Product Number

869854-B21

Product Description

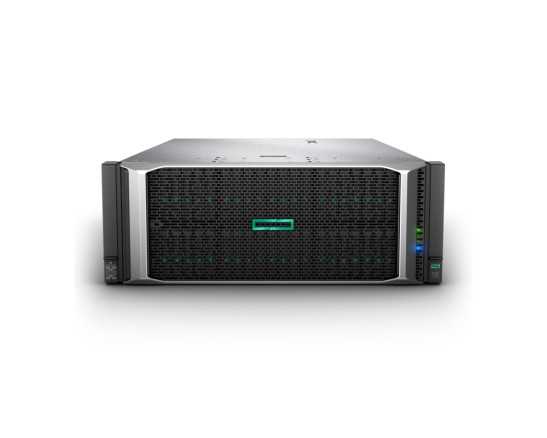

HPE ProLiant DL580 Gen10 8SFF Configure-to-order Server

Chipset

Intel® C621 Chipset

Processor

4U Server Chassis with 2 processor slots available; 4 processor configuration would require optional HPE

ProLiant HPE DL5x0 Gen10 CPU Mezzanine Board Kit (872222-B21)

DIMM Slots

24 DIMM slots for RDIMM, LRDIMM DDR4 Memory; 48 DIMM configuration would require optional

HPEProLiant HPE DL5x0 Gen10 CPU Mezzanine Board Kit (872222-B21) and 4 processors

Network Controller

None. FlexibleLOM slot (various options can be chosen for networking; NIC cards also available via expansion slots)

Storage Controller

HPE Smart Array S100i

PCIe

None. Must order a primary riser (16 PCIe 3.0 slots are available if all processors are chosen and the primary, secondary and tertiary Riser Kits have been installed)

Drive Cage

8 SFF in Box 1, no drives

Fans

12 hot plug fans, (n+1) redundant

Management

HPE iLO Standard with Intelligent Provisioning and (Standard); HPE OneView Standard (requires download) and HPE iLO Advanced (require additional licenses), HPE iLO Advanced Premium Security

Edition (require additional licenses), HPE OneView Advanced (require additional licenses)

microSD Slots

1 microSD card slot (internal)

TPM Connector

1 Trusted Platform Module (TPM) connector

UEFI

BIOS Legacy mode (field configurable) or Unified Extensible Firmware Interface (UEFI) mode (default)

USB

7 USB ports (2 USB 2.0 and 5 USB 3.0), Optional 2 front available via universal media kit upgrade

Video Ports

2 video ports (1 front optional via the Universal Media Kit upgrade option, 1 rear)

Rails

HPE DL580 Gen10 4U Rail Kit with CMA
