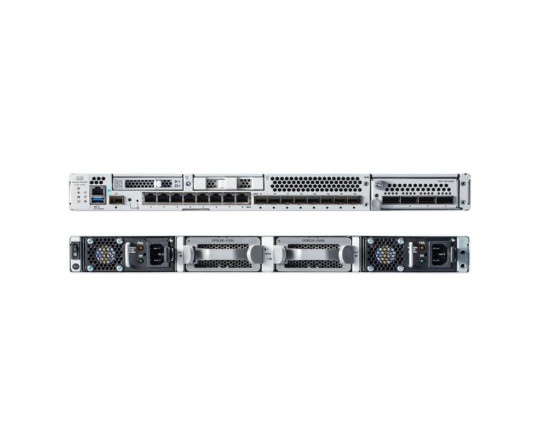

FPR3120-NGFW-K9

Dimensions (H x W x D)

1.75 x 17 x 20 in.

(4.4 x 43.3 x 50.8 cm)

Form factor (rack units)

1RU

Integrated I/O

8 x 10M/100M/

1GBASE-T Ethernet interfaces (RJ- 45), 8 x 1/10 Gigabit (SFP) Ethernet interfaces

Network modules

8 x 1/10G Options

Maximum number of interfaces

Up to 24 total Ethernet ports, (8x1G RJ-45, 8x1/10G SFP, and network module)

Integrated network management ports

1 x 1/10G SFP

Serial port

1 x RJ-45 console

USB

1 x USB 3.0 Type-A (900mA)

Storage

1x 900 GB, 1x spare slot

Power supply configuration

Single 400W AC, Dual 400W AC optional.

Single/Dual 400W DC optional1

AC input voltage

100 to 240V AC

AC maximum input current

< 6A at 100V

AC maximum output power

400W

AC frequency

50 to 60 Hz

AC efficiency

>89% at 50% load

DC input voltage

-48V to -60VDC

DC maximum input current

< 12.5A at -48V

DC maximum output power

400W

DC efficiency

>88% at 50% load

Redundancy

1+1 AC or DC with dual supplies

Fans

2 hot-swappable fan modules (with 2 fans each)2

Noise

65 dBA@ 25C

74 dBA maximum

Rack mountable

Yes. Fixed mount brackets optional.

(2- post). Mount rails included (4-post EIA- 310-D rack)

Weight

23 lb (10.5 kg) 1 x power supplies, 1 x NM, fan module, 1x SSD

Temperature: operating

32 to 104°F
(0 to 40°C)

or NEBS operation (see below)3

Temperature: nonoperating

-4 to 149°F

(-20 to 65°C)

Humidity: operating

10 to 85%

noncondensing

Humidity: nonoperating

5 to 95% noncondensing

Altitude: operating

10,000 ft (max) or NEBS operation (see below)3

Altitude: nonoperating

40,000 ft (max)

NEBS operation
(FPR- 3120 Only)3

Operating altitude: 0 to 13,000 ft
(3962 m)

Operating temperature: Long term: 0 to 45°C, up to 6,000 ft (1829 m) Long term: 0 to 35°C, 6,000 to 13,000 ft

(1829 to 3964 m) Short term: -5 to 55°C, up to 6,000 ft
(1829 m)
