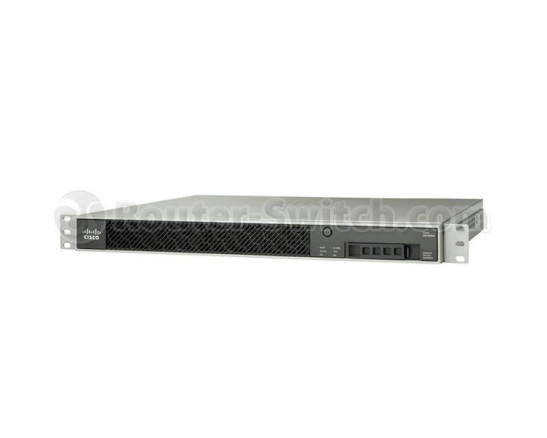

Cisco ASA 5525-K7 includes firewall services, 750 IPsec VPN peers, 2 SSL VPN peers, 8 copper Gigabit Ethernet data ports, 1 copper Gigabit Ethernet management port, 1 AC power supply, Active/Active High Availability, 2 security contexts, no payload encryption.
ASA5525-K7 Specification |
|
|
General |
|
|
Device Type |
Security appliance |
|
Height (Rack Units) |
1U |
|
Width |
16.9 in |
|
Depth |
15.6 in |
|
Height |
1.7 in |
|
Weight |
14.99 lbs |
|
Processor / Memory / Storage |
|
|
RAM |
8 GB |
|
Networking |
|
|
Form Factor |
Rack-mountable |
|
Ports Qty |
8 |
|
Connectivity Technology |
Wired |
|
Data Link Protocol |
Gigabit Ethernet |
|
Performance |
Firewall throughput: 2 Gbps ¦ VPN throughput (3DES/AES): 300 Mbps ¦ Connection rate: 20000 connections per second ¦ Firewall + intrusion prevention throughput: 600 Mbps |
|
Capacity |
IPSec VPN peers: 750 ¦ SSL VPN peers: 2 ¦ Concurrent sessions: 500000 ¦ Virtual interfaces (VLANs): 200 ¦ Security contexts: 2 |
|
Status Indicators |
Power, HDD activity, active, alarm |
|
Features |
Firewall protection, VPN support, VLAN support, High Availability |
|
Expansion / Connectivity |
|
|
Expansion Slots |
1 (total) / 1 (free) x expansion slot |
|
Interfaces |
8 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x management - RJ-45 ¦ 2 x USB 2.0 - Type A |
|
Miscellaneous |
|
|
Rack Mounting Kit |
Included |
|
Compliant Standards |
VCCI, C-Tick, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, EN55022 Class A, CISPR 22, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 B Class A, CAN/CSA C22.2 No. 60950-1-07, ANSI C63.4-2009 |
|
Power |
|
|
Power Device |
Internal power supply |
|
Installed Qty |
1 |
|
Max Supported Qty |
1 |
|
Voltage Required |
AC 120/230 V (50/60 Hz) |
|
Power Provided |
400 Watt |
|
Software / System Requirements |
|
|
Software Included |
Drivers & Utilities |
|
Manufacturer Warranty |
|
|
Service & Support |
Limited warranty - 90 days |
|
Environmental Parameters |
|
|
Min Operating Temperature |
23 °F |
|
Max Operating Temperature |
104 °F |
