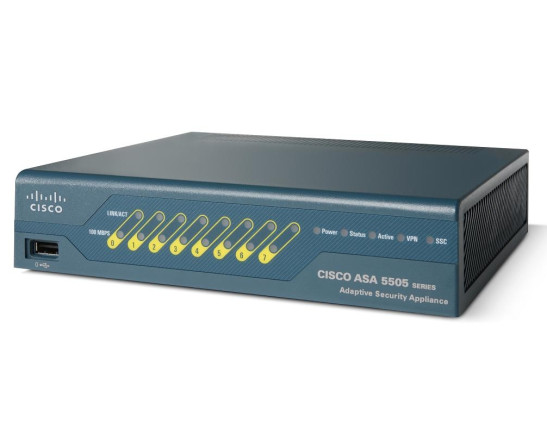

ASA5505-K8 Specification |
|
|
Product Number |
ASA5505-K8 |
|
Product Description |
Cisco ASA 5505 10-User Bundle includes 8-port Fast Ethernet switch, 10 IPsec VPN peers, 2 SSL VPN peers, Data Encryption Standard (DES) license |
|
Users/Nodes |
10 |
|
Firewall Throughput |
Up to 150 Mbps |
|
Maximum Firewall and IPS Throughput |
● Up to 150 Mbps with AIP-SSC-5 |
|
3DES/AES VPN Throughput |
Up to 100 Mbps |
|
IPsec VPN Peers |
10; 25 |
|
SSL VPN Peers Included/ Maximum) |
2/25 |
|
Concurrent Connections |
10,000; 25,000 |
|
New Connections/ Second |
4000 |
|

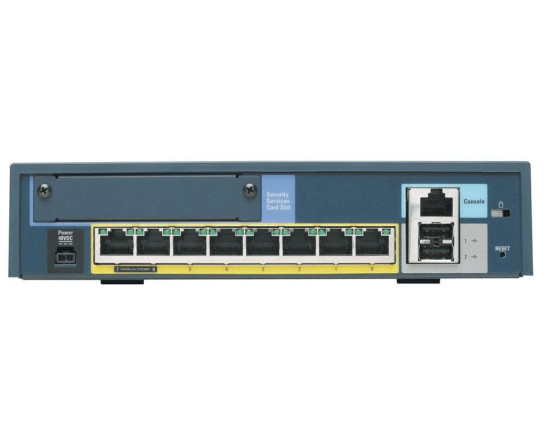

Integrated Network Ports |
8-port Fast Ethernet switch (including 2 PoE ports) |
|
Virtual Interfaces (VLANs) |
3 (no trunking support)/20 (with trunking support) |
|
Security Contexts (Included/ Maximum) |
0/0 |
|
High Availability |
Not supported; stateless Active/Standby and redundant ISP support |
|
Expansion Slot |
1, SSC |
|
User-Accessible Flash Slot |
0 |
|
USB 2.0 Ports |
3 (1 on front, 2 on rear) |
|
Serial Ports |
1 RJ-45 console |
|
Rack-Mountable |
Yes, with rack-mount kit (available in the future) |
|
Wall-Mountable
|
Yes, with wall-mount kit (available in the future) |
|
Security Lock Slot (for Physical Security) |
Yes |
|
Memory |
256 MB |
|
Minimum System Flash |
64 MB |
|
System Bus |
Multibus architecture |
|
Form Factor |
Desktop |
|
Dimensions (H x W x D) |
1.75 x 7.89 x 6.87 in. (4.45 x 20.04 x 17.45 cm) |
|
Weight (with Power Supply) |
4.0 lb (1.8 kg) |
|
Safety |
UL 60950, CSA C22.2 No. 60950, EN 60950 IEC 60950, AS/NZS60950 |
|
Electromagnetic Compatibility (EMC) |
CE marking, FCC Part 15 Class B, AS/NZS CISPR22 Class B, VCCI Class B, EN55022 Class B, CISPR22 Class B, EN61000-3-2, EN61000-3-3 |
|
Industry Certifications |
FIPS 140-2 Level 2. In process: Common Criteria EAL4+ US DoD Application-Level Firewall for Medium-Robustness Environments, and Common Criteria EAL4 for IPsec/SSL VPN |
