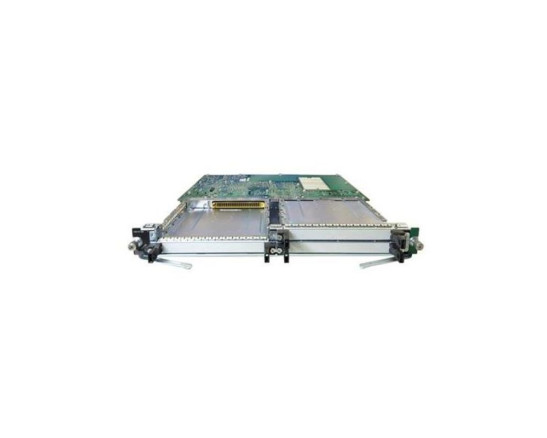

SM-X-64A
Артикул:
₴ 426,481.00
64 channel Async serial interface for ISR4000 series router
Cisco's SM-X-64A is a 64-channel Async serial interface designed for the ISR4000 series router. It provides robust connectivity options for engineers and IT professionals seeking high performance and expandability in their networking infrastructure.
SM-X-64A Specifications | |
| Brand | Cisco |
| Model | SM-X-64A |
| Channels | 64 |
| Interface Type | Async Serial |
| Compatible Router Series | ISR4000 |
| Max Data Rate per Channel | Up to 1 Mbps |
| Total Data Rate | Up to 64 Mbps |
| Connector Type | Serial |
| Form Factor | Internal Module |
| Environmental Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Relative Humidity (Non-Operating) | 5% to 95%, non-condensing |
| Relative Humidity (Operating) | 10% to 90%, non-condensing |
| Power Consumption | 25W (Typical) |
| MTBF | 1,200,000 hours |
| Supported Protocols | RS232, RS422, RS485 |
| Baud Rates | 110 bps to 1 Mbps |
| Module Dimensions | 20 cm x 15 cm x 2 cm (7.87 in x 5.91 in x 0.79 in) |
| Compliance Standards | UL, CE, RoHS |
| Warranty | 1 Year Limited |
