NCS-5516
Артикул:
₴ 1,147,807.00

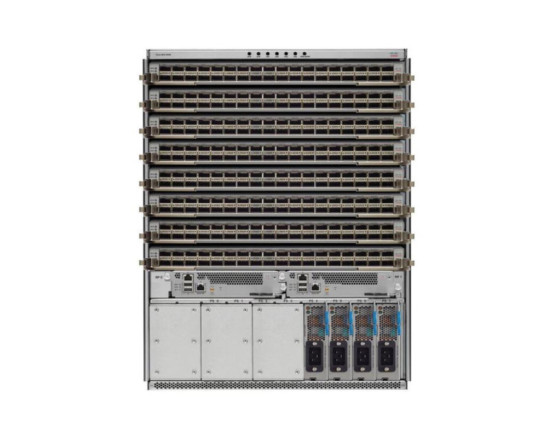

NCS5500 16 Slot Configured Chassis
The Cisco NCS-5516 is a high-performance 16-slot configured chassis designed for large-scale networks. Ideal for service providers and enterprises, it delivers enhanced scalability, robust performance, and network reliability in diverse data environments.
Cisco NCS-5516 Specifications | |
| Product Model | NCS-5516 |
| Chassis Type | 16 Slot Configured Chassis |
| System Bandwidth | Up to 172.8 Tbps |
| Slots for Line Cards | 16 |
| Slots for Route Processors | 3 |
| Fabric Module Slots | 6 |
| Scalability | Scales to 1 million routes and 400 million addresses |
| Forwarding Capacity | Up to 8 billion packets per second (Bpps) |
| Redundancy | Supports component-level redundancy |
| Interface Support | 100GE, 40GE, 10GE, and OTU4 |
| Power Supply | AC and DC options available |
| Cooling | Front-to-back airflow |
| Dimensions (H x W x D) | 42 RU x 19 in. x 33.5 in. |
| Operating Temperature | 0??C to 40??C |
| Non-Operating Temperature | -40??C to 70??C |
| Operating Humidity | 5% to 85% (non-condensing) |
| Non-Operating Humidity | 5% to 95% (non-condensing) |
| Compliance Standards | ROHS, NEBS Level 3 |
| MTBF | Est. 300,000 hours |
| Software | Cisco IOS XR |
| Security Features | Hardware-based encryption, control plane protection |
