ISR4351-V/K9
Артикул:
₴ 181,194.00
200Mbps-400Mbps system throughput, 3 WAN/LAN ports, 3 SFP ports, multi-Core CPU,2 service module slots, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC
Quick Specs

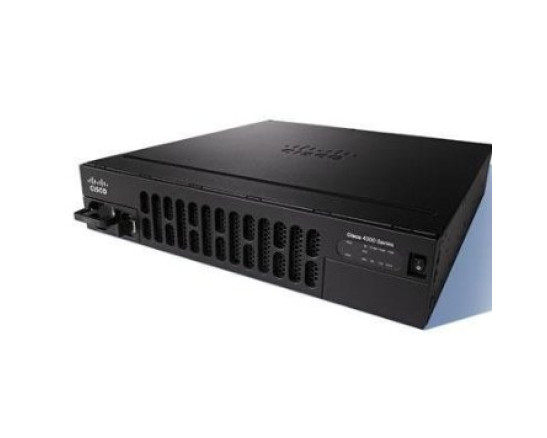

;Figure 1 shows the appearance of Cisco ISR4351/K9 for reference. ISR4351-V/K9 is similar with it.
;
Table 1 shows the Quick Specs.
;Product Code
;ISR4351-V/K9
;Aggregate Throughput
;200 Mbps to 400 Mbps
;Total onboard WAN or LAN 10/100/1000 ports
;3
;RJ-45-based ports
;3
;SFP-based ports
;3
;Enhanced service-module (SM-X) slot
;2
;NIM (Network Interface Modules) slots
;3
;Onboard ISC slot
;1
;Memory
;4 GB (default) / 16 GB (maximum)
;Flash Memory
;4 GB (default) / 16 GB (maximum)
;Power-supply options
;Internal: AC, DC (roadmap), and PoE
;Rack height
;2 RU
;Dimensions (H x W x D)
;43.9 x 438.15 x 507.2 mm
ISR4351-V/K9 Specification |
|
|
Description |
Cisco ISR4351-V/K9 (3GE,3NIM,2SM,4G FLASH,4G DRAM,Voice Bundle) |
|
Aggregate Throughput |
200 Mbps to 400 Mbps |
|
Total onboard WAN or LAN 10/100/1000 ports |
3 |
|
RJ-45-based ports |
3 |
|
SFP-based ports |
3 |
|
Enhanced service-module slots |
2 |
|
Doublewide service-module slots |
1 (assumes no singlewide SM-X modules installed) |
|
NIM slots |
3 |
|
OIR (all I/O modules) |
Yes |
|
Onboard ISC slot |
1 |
|
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) |
4 GB |
|
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) |
16 GB |
|
Default memory DDR3 ECC DRAM (data plane) |
NA |
|
Maximum memory DDR3 ECC DRAM (data plane) |
NA |
|
Default memory DDR3 ECC DRAM (control/services plane) |
NA |
|
Maximum memory DDR3 ECC DRAM (control/services plane) |
NA |
|
Default flash memory |
4 GB |
|
Maximum flash memory |
16 GB |
|
External USB 2.0 slots (type A) |
2 |
|
USB console port -type B mini (up to 115.2 kbps) |
1 |
|
Serial console port - RJ45 (up to 115.2 kbps) |
1 |
|
Serial auxiliary port - RJ45 (up to 115.2 kbps) |
1 |
|
Power-supply options |
Internal: AC, DC, and PoE |
|
Redundant power supply |
N/A |
|
AC input voltage |
100 to 240 VAC autoranging |
|
AC input frequency |
47 to 63 Hz |
|
AC input current range, AC power supply (maximum) |
7.1 to 3.0A |
|
AC input surge current |
60 A peak and less than 12 Arms per half cycle |
|
Typical power (no modules) (watts) |
48 |
|
Maximum power with AC power supply (watts) |
430 |
|
Maximum power with PoE power supply (platform only) (watts) |
990 |
|
Maximum endpoint PoE power available from PoE power supply (watts) |
500 |
