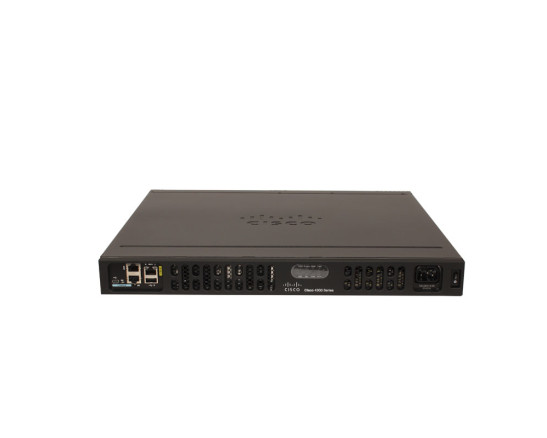

ISR4331/K9
Артикул:
₴ 73,554.00
ISR 4331 with 3 onboard GE, 2 NIM slots, 1 ISC slot, 1 SM slots, 4 GB Flash Memory default, 4 GB DRAM default
Cisco 4331 Integrated Services Router delivers 100 Mbps to 300 Mbps aggregate throughput and offers one Enhanced service-module (SM-X) slot, which supports for both single- and double-wide service modules provides flexibility in deployment options.
ISR4331/K9 Specifications |
|
| Aggregate Throughput (Default) | 100 Mbps |
| Aggregate Throughput (Performance License) | 300 Mbps |
| Aggregate CEF Only[5] Throughput (Boost License) | Over 2Gbps |
| Total onboard WAN or LAN 10/100/1000 ports | 3 |
| Total onboard WAN or LAN 10Gbps ports | - |
| RJ-45-based ports | 2 |
| SFP-based ports | 2 |
| Enhanced service-module slots | 1 |
| Doublewide service-module slots | 0 |
| NIM slots | 2 |
| OIR (all I/O modules) | Yes |
| Onboard ISC slot | 1 |
| Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) | 4 GB |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 16 GB |
| Default memory DDR3 ECC DRAM (data plane) | NA |
| Maximum memory DDR3 ECC DRAM (data plane) | NA |
| Default memory DDR3 ECC DRAM (control/services plane) | NA |
| Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
| Default flash memory | 4 GB |
| Maximum flash memory |
16 GB |
| External USB 2.0 slots (type A) |
1 |
| USB console port -type B mini (up to 115.2 kbps) | 1 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 |
| Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 |
| Power-supply options | Internal: AC and PoE, DC* (*4331-DC) |
| Redundant power supply | N/A |
| Power Specifications | |
| AC input voltage | 100 to 240 VAC autoranging |
|
Input Voltage |
24 – 60V |
| Input Current | 14 - 5A |
|
AC input frequency |
47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 3 to 1.3A |
| Sizes and Weights | |
| Dimensions (H x W x D) |
1.75 x 17.25 x 17.25 in (44.45 x 438.15 x 438.15 mm) |
| Rack height | 1 Rack Unit (1RU) |
| Typical weight (fully loaded with modules) | 16.1 lb (7.3 kg) |
| Packaging Weight |
4.6 lb (2.1 kg) |
| Airflow |
I/O side to bezel side |
| MTBF (Hours) | 587250 |
| Operating Conditions | |
|
Temperature |
32 to 104°F (0 to 40°C) |
| Altitude |
0 – 6,560 ft. (0 – 2,000 m) |
