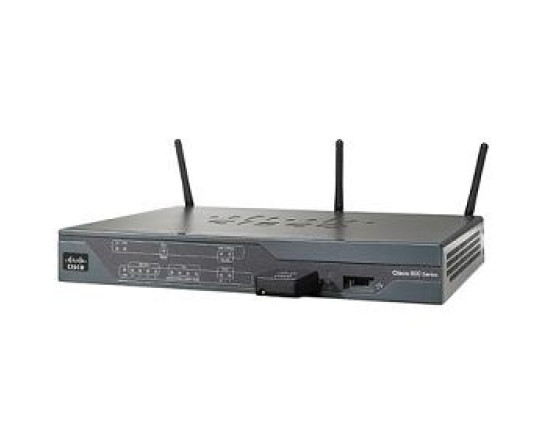

CISCO887-K9 (USED)
Артикул:
₴ 50,784.00
Cisco 887 ADSL2/2+ Annex A Router
CISCO881-SEC-K9 Specifications |
|
| Default and maximum flash memory |
● 128 MB on Cisco 880 Series data, embedded 3G Wireless WAN (WWAN), and Cisco Unified Border Element models
● 256 MB on Cisco 880 Series Voice and SRST models
● 256 MB on newer C881-K9, C886VA-K9, C886VAJ-K9, C887VA-K9, C887VAM-K9 and C888-K9 models
|
| WAN |
● Fast Ethernet
● Multimode VDSL2 and ADSl2/2+ over ISDN with ISDN backup
● Multimode VDSL2 and ADSl2/2+ over basic telephone service
● ADSL2/2+ over ISDN with ISDN backup
● ADSL2/2+ over basic telephone service with ISDN backup
● VDSL2 over basic telephone service with ISDN backup
● Multimode G.SHDSL (2- and 4-wire support) with ISDN backup
● Fast Ethernet and 3G WAN for Code Division Multiple Access (CDMA) and High-Speed Downlink Packet Access (HSDPA)
|
| LAN switch | Managed 4-port 10/100BASE-T with autosensing Media Device In/Media Device Cross-Over (MDI/MDX) for auto crossover |
| Standard 802.11g/n access point based on IEEE 802.11n draft 2.0 standard | Optional on all models |
| Console or auxiliary port | RJ-45 |
| One USB 1.1 port for advanced security features such as security tokens or USB flash memory |
● One USB 1.1 port on Cisco 880 Series Routers
● USB devices supported:
◦ USB eTokens
◦ USB flash memory
|
| ISDN BRI S/T | Available on:
● Cisco 886, 886VA, 887, 887V, 888, and 888EA for out-of-band management and dial backup or primary
|
| 3G express card modem | Available on:
● Cisco 881G, 886G, 887G, 887VG, and 888G for out-of-band management and backup or primary
● Cisco 888G for out-of-band management and backup or primary
Note: Cisco 887VG currently ships with HSPA modem only. |
| External power supply | Universal 100 to 240 VAC input; 60W, 12 VDC output |
| Physical dimensions and weight | Product dimensions, nonwireless models (H x W x D):
● 1.9 x 12.8 x 9.8 in. (48 x 325 x 249 mm) (includes rubber feet)
● 1.75 x 12.8 x 9.8 in. (44 x 325 x 249 mm) (without rubber feet)
Product dimensions, wireless models (H x W x D):
● 1.9 x 12.8 x 10.4 in. (48 x 325 x 264 mm) (includes rubber feet)
● 1.75 x 12.8 x 10.4 in. (44 x 325 x 264 mm) (without rubber feet; excludes antennas)
● Weight: 5.5 lb (2.5 kg) maximum
|
| Power | Product power specifications:
● AC input voltage: 100 to 240 VAC
● Frequency: 50 to 60 Hz
● Maximum output power: 60W
● Output voltages: 12 VDC
Optional internal PoE with external adapter:
● Maximum output power: 80W
● External output voltage: 48 VDC
|
| Approvals and compliance | Emissions:
● 47 CFR Part 15: 2006
● CISPR22: 2005
● EN300386: V1.3.3: 2005
● EN55022: 2006
● EN61000-3-2: 2000 [Inc amd 1 and 2]
● EN61000-3-3: 1995 [+ amd 1: 2001]
● ICES-003 Issue 4: 2004
● KN 22: 2005
● VCCI: V-3/2006.04
Immunity:
● CISPR24: 1997 [+ amd 1 and 2]
● EN300386: V1.3.3: 2005
● EN50082-1: 1992
● EN50082-1: 1997
● EN55024: 1998 [+ amd 1 and 2]
● EN61000-6-1: 2001
The following are supported on teleworker models:● AS/NRZ 3548: 1992 Class B
● CFR 47 Part 15 Class B
● EN60555-2 Class B
● EN55022 Class B
● ICES-003, Issue 2, Class B, April 1997S
|
