ASR1006
Артикул:
₴ 1,152,783.00

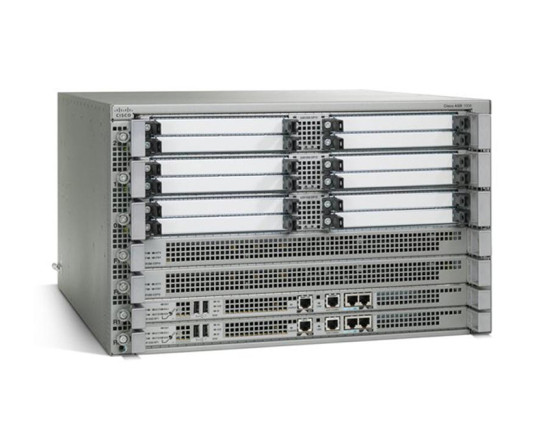

Cisco ASR 1006 Chassis, Dual P/S
Cisco ASR1006 is a high-performance router designed for edge routing applications in enterprises and service provider networks. It offers exceptional scalability, reliability, and security, making it an ideal choice for a wide range of network requirements.
ASR1006 Specifications |
|
|
Physical specifications Note: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets. Refer to the applicable hardware installation guide for additional details. |
Height: 10.5 in. (266.7 mm) Width: 17.2 in. (437.4 mm) Depth: 18.15 in. (461.0 mm) Weight: ● 98.70 lb (44.77 kg) (with dual AC power supply, SPA, route processor, two Cisco ASR 1000 Series 10-Gbps ESPs [ASR1000-ESP10] or ASR 1000 Series 40-Gbps ESPs [ASR1000-ESP-40] or ASR1000 Series 100-Gbps ESPs [ASR1000-ESP100], two Cisco ASR 1000 Series RP1s [ASR1000-RP1], three Cisco ASR 1000 Series 10-Gbps SIPs [ASR1000-SIP10] or ASR1000 Series 40-Gbps SIPs [ASR1000-SIP-40], and no SPAs)
|
|
Default memory |
4-GB DRAM RP1 8-GB DRAM RP2 |
|
Number of SIPs or Ethernet line cards supported |
3 |
|
Shared port adapters |
12 SPA slots |
|
Ethernet port adapters |
N/A |
|
Cisco ASR 1000 Series ESP |
2 ESP slots |
|
Route processor |
2 route-processor slots |
|
Redundancy |
Hardware: Yes |
|
Built-in Gigabit Ethernet ports |
0 |
|
Built-in 10 Gigabit Ethernet port |
No |
|
Network interface module |
No |
