ASR1004-20G-HA/K9
Артикул:
₴ 2,823,756.00

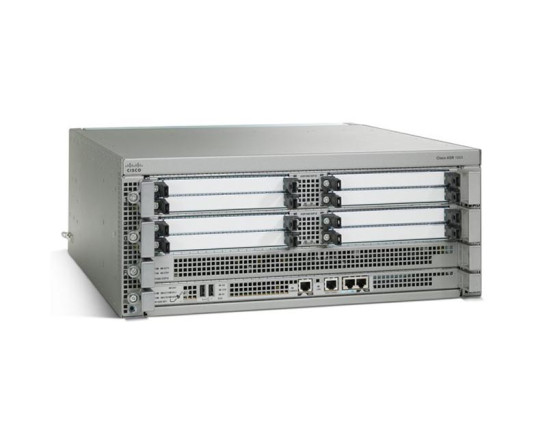

Cisco ASR 1000 Router High Availability Bundle ASR1004-20G-HA/K9
The ASR1004-20G-HA/K9 is a Cisco ASR 1000 router that offers a high availability bundle, ensuring uninterrupted network operation and minimal downtime. It is designed for organizations that require maximum reliability and fault tolerance in their networking infrastructure, making it suitable for mission-critical applications and environments that demand continuous connectivity.
ASR1004-20G-HA/K9 Specification | |
| General | |
| Device Type | Router - with Cisco ASR 1000 Series Embedded Services Processor, 20Gbps / Route Processor 1 / SPA Interface Processor 10G |
| Enclosure Type | Desktop - modular - 4U |
| Connectivity Technology | Wired |
| Performance | Bandwidth: 20 Gbps |
| Capacity | Concurrent L2TP VPN tunnels: 16000 ¦ Concurrent sessions: 32000 ¦ IPv4 routes: 1000000 ¦ IPv6 routes: 250000 ¦ IPSec VPN tunnels: 10000 ¦ NAT entries: 1000000 ¦ ACL rules: 16000 |
| Network / Transport Protocol | L2TP, IPSec |
| Remote Management Protocol | Telnet, SNMP 3, SSH |
| Encryption Algorithm | Triple DES, AES |
| Authentication Method | Secure Shell (SSH) |
| Features | Firewall protection, NAT support, VPN support, MPLS support, IPv6 support, Stateful switchover (SSO), Access Control List (ACL) support, Quality of Service (QoS), MPLS VPN, software redundancy |
| Compliant Standards | CISPR 24, EN55022, VCCI Class A ITE, EN55024, CISPR 22, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, AS/NZS 60950-1, AS/NZ 3548 Class A, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1 |
| Expansion / Connectivity | |
| Interfaces | Management: 1 x 10Base-T/100Base-TX - RJ-45 ¦ Management: 1 x console - RJ-45 ¦ Management: 1 x auxiliary - RJ-45 ¦ USB: 1 x |
| Expansion Slots | 1 (total) / 0 (free) x processor board ¦ 11 (total) / 9 (free) x expansion slot |
| Installed Modules Qty (Max) | 3 (installed) / 12 (max) |
| Power | |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Installed Qty | 2 (installed) / 2 (max) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Software / System Requirements | |
| OS Provided | Cisco IOS Advanced Enterprise Services |
| Dimensions & Weight | |
| Width | 17.2 in |
| Depth | 21.9 in |
| Height | 7 in |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% |
