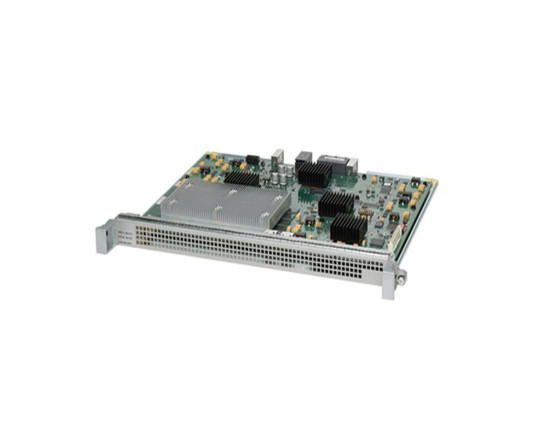

ASR1000-ESP40

ASR1000-ESP40 Specifications

ESP bandwidth

40 Gbps

ESP memory

Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10) and ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10): 2‑GB DRAM default; 2‑GB DRAM maximum

Cisco ASR 1000 Series 20-Gbps ESP (ASR1000-ESP20): 4‑GB DRAM default; 4‑GB DRAM maximum

SIPs and Ethernet line cards

Supports Cisco ASR 1000 Series 10-Gbps SIP Carrier Card (ASR1000-SIP10), Cisco ASR 1000 Series 40-Gbps SIP Carrier Card (ASR1000-SIP40), and ASR 1000 Fixed Ethernet Line Cards; two 10 GE + twenty 1 GE line cards (ASR1000-2T+20X1GE); and six 10 GE line cards (ASR1000-6TGE)

Embedded hardware-based encryption (highest throughput numbers are for 1400B packets)

Yes: On Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10) with up to 4 Gbps and on Cisco ASR 1000 Series 20-Gbps ESP (ASR1000-ESP20) with up to 8-Gbps crypto support throughput

Note: No support on noncrypto Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10-N)

Minimum Cisco IOS XE Software release

Cisco IOS XE Software Release 2.1

Rack-mounting

Yes: 19-inch

Wall-mounting

No

External USB flash memory

1-GB USB flash-memory support

Redundant power supply

Same as for Cisco ASR 1002

Power input

Same as for Cisco ASR 1002

Power consumption

Airflow

Front-to-back

Operating temperature (nominal)

Same as for Cisco ASR 1001-X

Operating temperature (short-term)

Same as for Cisco ASR 1001-X

Operating humidity (nominal) (relative humidity)

Same as for Cisco ASR 1001-X

Operating humidity (short-term)

Same as for Cisco ASR 1001-X

Storage temperature

Same as for Cisco ASR 1001-X

Storage humidity (relative humidity)

Same as for Cisco ASR 1001-X

Operating altitude

Same as for Cisco ASR 1001-X

Network Equipment Building Standards (NEBS)

GR-1089 and GR-63

EMC standards

Same as for Cisco ASR 1001-X

Safety Standard

UL60950-1

CSA C22.2 No. 60950-1-03

EN 60950-1

IEC 60950-1

AS/NZS 60950.1
