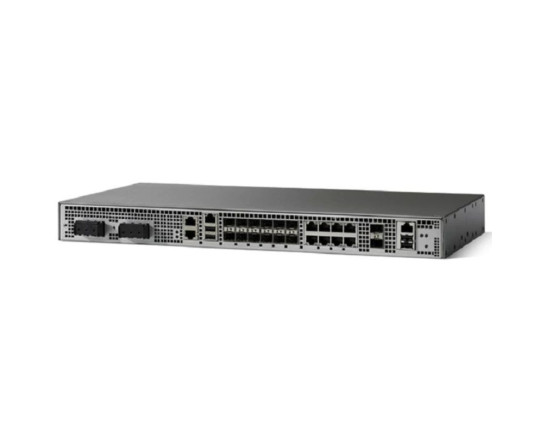

ASR-920-24SZ-M
Артикул:
₴ 193,683.00
Cisco ASR920 Series - 24GE Fiber and 4-10GE : Modular PSU
Cisco ASR-920-24SZ-M is part of the Cisco ASR920 Series, offering 24GE Fiber and 4-10GE ports with a modular PSU. This high-performance router is perfect for service providers and large enterprises, providing robust connectivity and flexible deployment options.
ASR-920-24SZ-M Specifications |
|
|
Physical specifications1 (H x W x D) |
1.72 x 17.5 x 10 in. (43.7 x 444.5 x 255 mm), 1RU |
| Weight | 8.5 lb (3.9kg) - empty chassis |
| Rack mounts |
ETSI rack-mount kit 19-in. rack-mount kit 23-in. rack-mount kit |
| Air flow | Front-to-Back & Side-to-Back airflow |
| Power supplies | 546,260 |
| Mean time between failures (MTBF) (hours) | |
| 1 Measured from the front of the chassis (excluding handles from the power supply, fan tray, and interface modules installed in the chassis). | |
| Power consumption | Max 145W, Typical: 110W |
| AC input voltage and frequency |
Voltage range: 85V AC to 264V AC, nominal 100V AC to 240V AC Frequency Range: 47 to 63 Hz, nominal 50 to 60 Hz |
| DC input voltage | Voltage range: -18 to -32 VDC or -36 to -72 VDC, nominal: -24 VDC/-48 VDC |
| Operating environment and altitude1 |
-40 to 70ºC, up to 1,000 feet (300m) -40 to 65ºC, up to 6,000 feet (1800m) -40 to 55ºC, up to 13,000 feet (4000m) |
| Relative humidity | 5 to 95 percent, noncondensing |
| Acoustic noise2 | Acoustic noise peak operation compliant to the Network Equipment Building Standards (NEBS) GR-63-Core Issue 3 sound power level of 78 dB at 27ºC operation as measured by the ANSI S12.10/ISO 7779 NAIS noise measurement test standard. |
| Storage environment | Temperature: -40 to 70ºC altitude: 15,000 feet (4570m) |
| Seismic | Zone 4 |
| Safety |
● UL 60950-1, 2005
● CAN/CSA C22.2 No. 60950-1: 2005
● IEC 60950-1, 2005
● EN 60950-1, 2005
● AS/NZS 60950.1:2005
|
|
Electromagnetic |
● FCC CFR47 Part 15 Class A |
| Emissions compliance |
● EN55022, class A
● CISPR22, class A
● ICES-003, class A
● EN 300 386, class A
● VCCI, class A
● KN22, class A
● EN61000-3-2 to EN61000-3-3
|
| Immunity compliance |
● EN 300 386
● EN 61000-6-1
● EN 50082-1
● CISPR24
● EN 55024
● KN 24
● EN 50121-4
● EN/KN 61000-4-2 to EN/KN 61000-4-6
● EN/KN 61000-4-8
● EN/KN 61000-4-11
|
| Power substation system compliance |
● IEC-61850-3 (2002) (ASR-920-12SZ-IM)
● IEEE1613 (2009) (ASR-920-12SZ-IM)
|
| NEBS1 |
● GR-63-CORE
● GR-1089-CORE
● SR-3580 NEBS Level 4
|
| ETSI |
● ETS/EN 300 119 Part 4
● ETS/EN 300 019 - Storage: Class 1.2, Transportation: Class 2.3, In-Use/Operational: Class 3.2
● ETS/EN 300 753
|
| Network synchronization |
● ANSI T1.101
● GR-1244-CORE
● GR-253-CORE
● ITU-T G.703 clause 5
● ITU-T G.703 clause 9
● ITU-T G.781
● ITU-T G.813
● ITU-T G.823
● ITU-T G.824
● ITU-T G.8261/Y.1361
● ITU-T G.8262
● ITU-T G.8264
● IEEE1588-2008
|
| 1 Notable exceptions: Fans do not have filters, and all cabling is provided through the front panel | |
