ASR-920-12SZ-IM
Артикул:
₴ 345,682.00

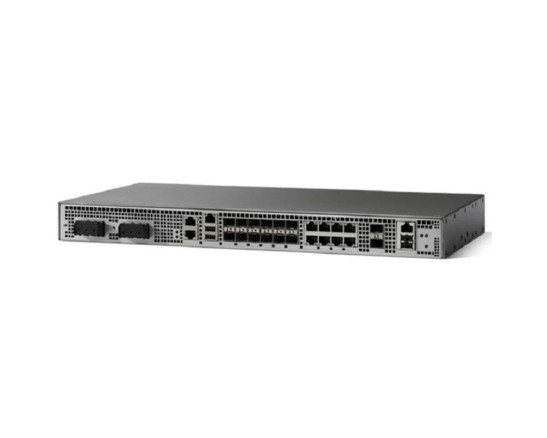

Cisco ASR920 Series - 12GE and 4-10GE, 1 IM slot
The Cisco ASR920-12SZ-IM is a versatile network router belonging to the Cisco ASR920 Series. It features 12 Gigabit Ethernet interfaces and 4 10-Gigabit Ethernet ports, making it ideal for service providers and enterprises needing high-speed, reliable connectivity. Designed for optimal performance, it supports a wide range of applications including metro aggregation and mobile backhaul, providing a robust solution for diverse networking needs.
ASR-920-12SZ-IM Specifications |
|
|
Physical specifications (H x W x D) |
1.73 x 17.5 x 11.28 in. (44 x 444.5 x 286.54 mm), 1RU |
|
Weight |
9.25 lb (4.2 kg) - empty chassis |
|
Rack mounts |
ETSI rack-mount kit 19-in. rack-mount kit 23-in. rack-mount kit |
|
Airflow |
Front-to-Back airflow (ASR-920-12SZ-IM/ASR-920-12SZ-IM-CC, ASR-920-24TZ-M, ASR-920-24SZ-M) Front-to-Back & Side-to-Back airflow (ASR-920-24SZ-IM) |
|
Power supplies |
2 power supplies (AC or DC) |
|
Mean time between failures (MTBF) (hours) |
407,230 |
|
Power consumption |
Max 150W, Typical: 130W (without PoE) |
|
AC input voltage and frequency |
Voltage range: 85V AC to 264V AC, nominal 100V AC to 240V AC Frequency Range: 47 to 63 Hz, nominal 50 to 60 Hz |
|
DC input voltage |
Voltage range: -18 to -32 VDC or -36 to -72 VDC, nominal: -24 VDC/-48 VDC Voltage range (ASR-920-12SZ-IM/ASR-920-12SZ-IM-CC): -18 VDC to -32 VDC or -40 VDC to -72 VDC nominal -24VDC/-48VDC/-60VDC |
|
Operating environment and altitude |
-40 to 70ºC, up to 1,000 feet (300m) -40 to 65ºC, up to 6,000 feet (1800m) -40 to 55ºC, up to 13,000 feet (4000m) |
|
Relative humidity |
5 to 95 percent, noncondensing |
|
Acoustic noise |
Acoustic noise peak operation maximum 55 dBA (59 dBA for ASR-920-12SZ-IM/ASR-920-12SZ-IM-CC) sound pressure level, bystander position for rack-mount products at 20ºC operation as measured by ISO 7779 NAIS noise measurement test standard. Acoustic noise peak operation compliant to the Network Equipment Building Standards (NEBS) GR-63-Core Issue 3 sound power level of 78 dB at 27ºC operation as measured by the ANSI S12.10/ISO 7779 NAIS noise measurement test standard. |
|
Storage environment |
Temperature: -40 to 70ºC altitude: 15,000 feet (4570m) |
|
Seismic |
Zone 4 |
