A9K-8X100GE-TR
Артикул:
₴ 47,288,046.00

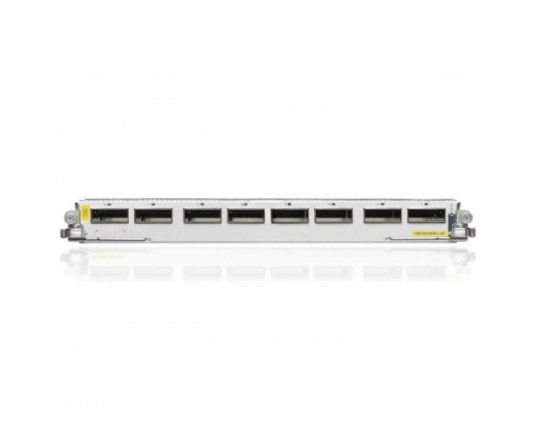

Cisco A9K-8X100GE-TR
Cisco's A9K-8X100GE-TR is a high-capacity, high-efficiency network module designed for enhancing the capabilities of the ASR 9000 Series routers. This module is ideal for service providers and large enterprise networks that require robust, scalable, and reliable high-speed data transmission. It excels in high-performance environments, ensuring optimal network performance and adaptability.
A9K-8X100GE-TR Specifications |
|
|
Chassis compatibility |
Compatible with the Cisco ASR 9006, ASR 9010, ASR 9904, ASR 9906, ASR 9912 and ASR 9922 chassis |
|
Port density |
4-ports and 8 ports of 100 Gigabit Ethernet per line card |
|
Ethernet |
● 100-Gbps IEEE 802.3ba compliant
● 100 Gigabit Ethernet PHY monitoring
● IEEE 802.x flow control
● Full-duplex operation
● Per-port byte and packet counters for policy drops; oversubscription drops; Cyclic Redundancy Check (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets
|
|
Performance |
● 100-Gbps line-rate throughput per port
|
|
Options |
Each line card is available as either a service edge optimized (enhanced QoS) or packet transport optimized (basic QoS) line card |
|
Reliability and availability |
Line card Online Insertion and Removal (OIR) support without system impact |
|
Physical dimensions (H x W x D); weight |
8-port 100 Gigabit Ethernet Line Card: 14.5 x 1.63 x 22.02 in.; 28 lb (est.) (368.3 mm x 41.4 mm x 559.3 mm; 12.7 kg) 4-port 100 Gigabit Ethernet Line Card: 14.5 x 1.63 x 22.02 in.; 28 lb (est.) (368.3 mm x 41.4 mm x 559.3 mm; 12.7 kg) |
|
Operating temperature |
41 to 104°F (5 to 40°C) |
|
Operating humidity (nominal) (relative humidity) |
10 to 85% |
|
Storage temperature |
–40 to 158°F (–40 to 70°C) |
|
Storage (relative humidity) |
5 to 95% Note: Not to exceed 0.024 kg of water per kg of dry air |
|
Operating altitude |
–60 to 4000m (up to 2000m conforms to IEC, EN, UL, and CSA 60950 requirements) |
|
ETSI standards |
Cisco ASR 9000 Series Routers are designed to meet: ● EN300 386: Telecommunications Network Equipment (EMC)
● ETSI 300 019 Storage Class 1.1
● ETSI 300 019 Transportation Class 2.3
● ETSI 300 019 Stationary Use Class 3.1
● EN55022: Information Technology Equipment (Emissions)
● EN55024: Information Technology Equipment (Immunity)
● EN50082-1/EN-61000-6-1: Generic Immunity Standard
|
|
EMC standards |
Cisco ASR 9000 Series Routers are designed to meet: ● FCC Class A
● ICES 003 Class A
● AS/NZS 3548 Class A
● CISPR 22 (EN55022) Class A
● VCCI Class A
● BSMI Class A
● IEC/EN 61000-3-2: Power Line Harmonics
● IEC/EN 61000-3-3: Voltage Fluctuations and Flicker
|
|
Immunity |
Cisco ASR 9000 Series Routers are designed to meet: ● IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)
● IEC/EN-61000-4-3: Radiated Immunity (10V/m)
● IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)
● IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)
● IEC/EN-61000-4-5: Signal Ports (1kV)
● IEC/EN-61000-4-5: Surge DC Port (1kV)
● IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)
● IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)
● IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
|
|
Safety |
Cisco ASR 9000 Series Routers are designed to meet: ● UL/CSA/IEC/EN 60950-1
● IEC/EN 60825 Laser Safety
● ACA TS001
● AS/NZS 60950
● FDA: Code of Federal Regulations Laser Safety
|
|
Safety |
Cisco ASR 9000 Series Routers are designed to meet: ● UL/CSA/IEC/EN 60950-1
● IEC/EN 60825 Laser Safety
● ACA TS001
● AS/NZS 60950
● FDA: Code of Federal Regulations Laser Safety
|
