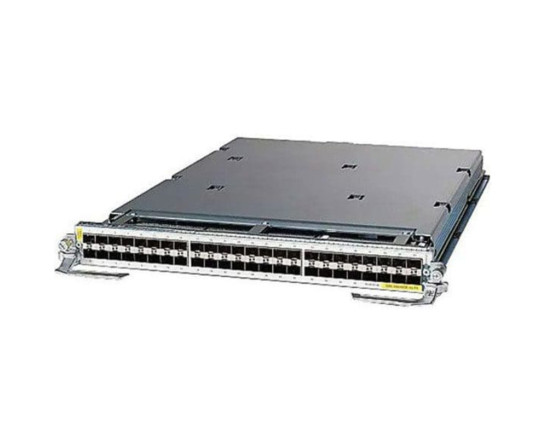

A9K-48X10GE-1G-TR
Артикул:
₴ 12,855,038.00
ASR 9000 48-port 10GE & 1GE dual rate -TR LC
The Cisco A9K-48X10GE-1G-TR is an advanced line card designed for the ASR 9000 Series Aggregation Services Routers, offering 48 ports of dual-rate 10GE & 1GE connectivity. Targeting network engineers and procurement professionals, it delivers exceptional scalability, performance, and flexibility ideal for cutting-edge data centers and service provider environments.
A9K-48X10GE-1G-TR Specifications |
|
|
Chassis compatibility |
Compatible with the Cisco ASR 9922, ASR 9912, ASR 9910, ASR 9906, ASR 9904, ASR 9010 and ASR 9006 chassis. ● A99-48X10GE-1G-FC, A99-48X10GE-1G-SE, A99-48X10GE-1G-TR PIDs – compatible with the ASR 9922, ASR 9912, ASR 9910, ASR 9906, ASR 9904 chassis
● A9K-48X10GE-1G-FC, A9K-48X10GE-1G-SE, A9K-48X10GE-1G-TR, A9K-24X10GE-1G-FC, A9K-24X10GE-1G-SE, A9K-24X10GE-1G-TR PIDs – compatible with the ASR 9922, ASR 9912, ASR 9910, ASR 9906, ASR 9904, ASR 9010, ASR 9006 chassis
|
|
Port density |
24 ports and 48 ports of 10 Gigabit/1 Gigabit Ethernet ports per line card |
|
Ethernet |
● 10-Gbps IEEE 802.3ba compliant
● 10 Gigabit Ethernet PHY monitoring
● IEEE 802.x flow control
● Full-duplex operation
● Per-port byte and packet counters for policy drops; oversubscription drops; Cyclic Redundancy Check (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets
|
|
Performance |
● 24-port dual-rate 10GE/1GE line card: 200-Gbps line-rate throughput, 240:200 oversubscription
● 48-port dual-rate 10GE/1GE line card: 400-Gbps line-rate throughput, 480:400 oversubscription
|
|
Options |
Each line card is available as either a service edge–optimized (enhanced QoS) or packet transport–optimized (basic QoS) line card |
|
Reliability and availability |
Line-card Online Insertion and Removal (OIR) support without system effects |
|
Physical dimensions |
24-port 10 Gigabit Ethernet Line Card: 14.5 x 1.63 x 22.02 in.; 18.3 lb (est.) 48-port 10 Gigabit Ethernet Line Card: 14.5 x 1.63 x 22.02 in.; 20 lb (est.) |
|
Operating temperature |
41 to 104°F (5 to 40°C) |
|
Operating humidity (nominal) (relative humidity) |
10 to 85% |
|
Storage temperature |
–40 to 158°F (–40 to 70°C) |
|
Storage (relative humidity) |
5 to 95% Note: Not to exceed 0.024 kg of water per kg of dry air |
|
Operating altitude |
–60 to 4000 m (up to 2000 m conforms to IEC, EN, UL, and CSA 60950 requirements) |
|
ETSI standards |
Cisco ASR 9000 Series Routers are designed to meet: ● EN300 386: Telecommunications Network Equipment (EMC)
● ETSI 300 019 Storage Class 1.1
● ETSI 300 019 Transportation Class 2.3
● ETSI 300 019 Stationary Use Class 3.1
● EN55022: Information Technology Equipment (Emissions)
● EN55024: Information Technology Equipment (Immunity)
● EN50082-1/EN-61000-6-1: Generic Immunity Standard
|
|
EMC standards |
Cisco ASR 9000 Series Routers are designed to meet: ● FCC Class A
● ICES 003 Class A
● AS/NZS 3548 Class A
● CISPR 22 (EN55022) Class A
● VCCI Class A
● BSMI Class A
● IEC/EN 61000-3-2: Power Line Harmonics
● IEC/EN 61000-3-3: Voltage Fluctuations and Flicker
|
|
Immunity |
Cisco ASR 9000 Series Routers are designed to meet: ● IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)
● IEC/EN-61000-4-3: Radiated Immunity (10V/m)
● IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)
● IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)
● IEC/EN-61000-4-5: Signal Ports (1kV)
● IEC/EN-61000-4-5: Surge DC Port (1kV)
● IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)
● IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)
● IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
|
|
Safety |
Cisco ASR 9000 Series Routers are designed to meet: ● UL/CSA/IEC/EN 60950-1
● IEC/EN 60825 Laser Safety
● ACA TS001
● AS/NZS 60950
● FDA: Code of Federal Regulations Laser Safety
|
