A900-IMA8Z
Артикул:
₴ 718,283.00

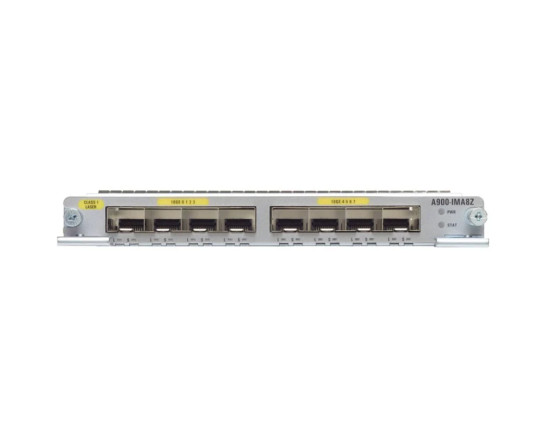

ASR 900 8 port 10GE SFP+ Interface Module
Cisco's A900-IMA8Z is a high-performance ASR 900 8 port 10GE SFP+ Interface Module designed for network scalability and efficiency. It offers superior data throughput, catering to enterprise networks and service providers requiring robust and high-speed connectivity solutions.
A900-IMA8Z Specifications |
|
|
Port density |
● 8-port Gigabit Ethernet SFP
● 8-port Gigabit Ethernet RJ45
● 8-port Gigabit Ethernet SFP and 1-port 10 Gigabit Ethernet SFP+
● 8-port Gigabit Ethernet RJ45 and 1-port 10 Gigabit Ethernet SFP+
● 8/16-port Gigabit Ethernet SFP/C-SFP and 1-port 10 Gigabit Ethernet SFP+ / 2-port Gigabit Ethernet C-SFP
● 1-port 10 Gigabit Ethernet, XFP
● 2-port 10 Gigabit Ethernet, SFP+/XFP
● 8-port 10 Gigabit Ethernet, SFP/SFP+
● 2-port 40 Gigabit Ethernet, QSFP
● 1-port 100 Gigabit Ethernet, CPAK
● 8-port T1/E1 TDM
● 16-port T1/E1 TDM
● 32-port T1/E1 TDM
● 48-port T1/E1 TDM
● 48-port T3/E3 TDM
● 8-port OC3/12/48/STM-1/-4/-16 SFP or 1-Port OC192/STM-64 SFP+
● 6-port 2-wire/4-wire E&M
● 4-port C37.94
● 14-port Serial Asynchronous Serial RS-232/X.21
● 4-port OC3/STM-1 or 1-port OC12/STM-4 TDM
● 12-port T1/E1 + 4-port DS3/E3 + 4-port OC3/STM-1 or 4-port OC12/STM-4 or 1-port OC48/STM-16
|
|
Power draw |
● 8-port Gigabit Ethernet SFP: 17W maximum
● 8-port Gigabit Ethernet RJ45: 17W maximum
● 8-port Gigabit Ethernet SFP and 1-port 10 Gigabit Ethernet SFP+: 15W typical, 29W maximum
● 8-port Gigabit Ethernet RJ45 and 1-port 10 Gigabit Ethernet SFP+: 27W maximum
● 8/16-port Gigabit Ethernet SFP/C-SFP and 1-port 10 Gigabit Ethernet SFP+ / 2-port Gigabit Ethernet C-SFP: 42W typical, 54W maximum
● 1-port 10 Gigabit Ethernet, XFP: 13W maximum
● 2-port 10 Gigabit Ethernet, SFP+/XFP: 25W maximum
● 8-port 10 Gigabit Ethernet SFP/SFP+: 53W typical, 57W maximum
● 2-port 40 Gigabit Ethernet QSFP: 45W typical, 53W maximum
● 1-port 100 Gigabit Ethernet CPAK: 50W maximum
● 8-port T1/E1 TDM: 14W typical, 18W maximum
● 16-port T1/E1 TDM: 14W typical, 18W maximum
● 32-port T1/E1 TDM: 14W typical, 18W maximum
● 48-port T1/E1 TDM: 30W typical, 35W maximum
● 48-port T3/E3 TDM: 44W typical, 52W maximum
● 8-port OC3/12/48/STM-1/-4/-16 SFP or 1-Port OC192/STM-64 SFP+: 78W typical, 92W maximum
● 6-port 2-wire/4-wire E&M: 33W maximum
● 4-port C37.94: 18W maximum
● 14-port Serial Asynchronous Serial RS-232/X.21: 31W maximum
● 4-port OC3/STM-1 or 1-port OC12/STM-4 TDM: 30W maximum
● 12-port T1/E1 + 4-port DS3/E3 + 4-port OC3/STM-1 or 4-port OC12/STM-4 or 1-port OC48/STM-16: 54W maximum
● port OC3/12/48/STM-1/-4/-16 SFP or 1-Port OC192/STM-64 SFP+ (A900-IMA1Z8S-CXMS): 77W typical, 96W maximum
|
|
Module shipment weight |
● 8-port Gigabit Ethernet SFP: 2.18 lbs
● 8-port Gigabit Ethernet RJ45: 2.15 lbs
● 8-port Gigabit Ethernet SFP and 1-port 10 Gigabit Ethernet SFP+: 3.4 lbs
● 8/16-port Gigabit Ethernet SFP/C-SFP and 1-port 10 Gigabit Ethernet SFP+ / 2-port Gigabit Ethernet C-SFP: 3.5 lbs
● 1-port 10 Gigabit Ethernet, XFP: 2.03 lbs
● 2-port 10 Gigabit Ethernet, SFP+/XFP: 1.8 lbs
● 8-port 10 Gigabit Ethernet SFP/SFP+: 3.8 lbs
● 2-port 40 Gigabit Ethernet QSFP: 2.55 lbs
● 1-port 100 Gigabit Ethernet CPAK: 2.23 lbs
● 8-port T1/E1 TDM: 2.13 lbs
● 16-port T1/E1 TDM: 2.13 lbs
● 32-port T1/E1 TDM: 1.91 lbs
● 48-port T1/E1 TDM: 2.1 lbs
● 48-port T3/E3 TDM: 2.1 lbs
● 8-port OC3/12/48/STM-1/-4/-16 SFP or 1-Port OC192/STM-64 SFP+: 2.5 lbs
● 6-port 2-wire/4-wire E&M: 2.1 lbs
● 4-port C37.94: 1.48 lbs
● 14-port Serial Asynchronous Serial RS-232/X.21: 2.1 lbs
● 4-port OC3/STM-1 or 1-port OC12/STM-4 TDM: 2.1 lbs
● 12-port T1/E1 or 4-port DS3/E3 + 4-port OC3/STM-1 or 4-port OC12/STM-4 or 1-port OC48/STM-16: 3 lbs
● 8-port OC3/12/48/STM-1/-4/-16 SFP or 1-Port OC192/STM-64 SFP+ (A900-IMA1Z8S-CXMS):
1.7 lbs |
|
Module shipment package size (LxWxH) |
15.44 x 9.44 x 4.31 inches |
|
Environmental specifications1 |
–40 to 65°C (–40 to 149°F) operating temperature (using Industrial temperature XFP, SFP, and SFP+ optics) 0 to 40°C (32 to 104°F) operating temperature (CPAK and QSFP optics) |
|
Relative humidity |
5 to 95%, noncondensing |
|
Storage environment |
Temperature: –40 to 70°C (–40 to 158°F) altitude: 4570 m (15,000 ft) |
|
MTBF at 40°C (104°F) operating temperature |
● 8-port Gigabit Ethernet SFP: 2,987,310 hours
● 8-port Gigabit Ethernet RJ45: 3,262,980 hours
● 8-port Gigabit Ethernet SFP and 1-port 10 Gigabit Ethernet SFP+: 2,257,780 hours
● 8/16-port Gigabit Ethernet SFP/C-SFP and 1-port 10 Gigabit Ethernet SFP+ / 2-port Gigabit Ethernet C-SFP: 1,256,050 hours
● 8-port Gigabit Ethernet RJ45 and 1-port 10 Gigabit Ethernet SFP+: 2,346,710 hours
● 1-port 10 Gigabit Ethernet, XFP: 3,604,370 hours
● 1-port 100 Gigabit Ethernet, QSFP28: 1,926,830 hours
● 2-port 10 Gigabit Ethernet, SFP+/XFP: 2,646,500 hours
● 8-port 10 Gigabit Ethernet SFP/SFP+: 1,897,650 hours
● 2-port 40 Gigabit Ethernet QSFP: 1,926,830 hours
● 1-port 100 Gigabit Ethernet CPAK: 1,715,860 hours
● 8-port T1/E1 TDM: 1,897,030 hours
● 16-port T1/E1 TDM: 1,738,850 hours
● 32-port T1/E1 TDM: 1,337,130 hours
● 48-port T1/E1 TDM: 1,440,130 hours
● 48-port T3/E3 TDM: 1,320,980 hours
● 8-port OC3/12/48/STM-1/-4/-16 SFP or 1-Port OC192/STM-64 SFP+: 939,900 hours
● 6-port 2-wire/4-wire E&M: 418,750 hours
● 4-port C37.94: 1,493,730 hours
● 14-port Serial Asynchronous Serial RS-232/X.21: 1.420,010 hours
● 4-port OC3/STM-1 or 1-port OC12/STM-4 TDM: 1,418,890 hours
● 12-port T1/E1 + 4-port DS3/E3 + 4-port OC3/STM-1 or 4-port OC12/STM-4 or 1-port OC48/STM-16: 989,480 hours
● 8-port OC3/12/48/STM-1/-4/-16 SFP or 1-Port OC192/STM-64 SFP+ (A900-IMA1Z8S-CXMS): 924,860 hours
|
|
Reliability and availability |
OIR field-replaceable SFP optics modules Support for both 1+1 SONET Automatic Protection Switching (APS) and SDH Linear Multiplexer Section Protection (MSP) protocols Single interface module software reset Rolling software upgrade, interface module by interface module |
