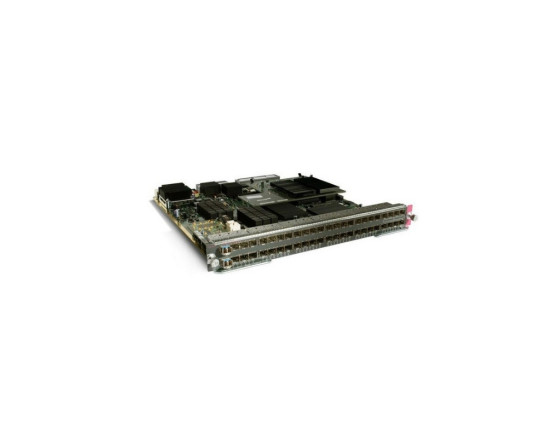

WS-X6848-SFP-2TXL
Артикул:
₴ 1,213,503.00
6800 Series 48-Port 1 Gigabit SFP Fiber Ethernet Module with DFC4 & DFC4XL
The Cisco Catalyst® 6500 Series Switches offer a variety of 10 Gigabit and Gigabit Ethernet modules which work in conjunction with the new Catalyst 6500 Supervisor Engine 2T/2TXL (VS-S2T-10G & VS-S2T-10GXL) to serve different needs in the campus and data center for enterprise, commercial, and service provider customers. The modules in this family include the new 6800 Series 16-port 10 Gigabit Ethernet Fiber Module, 16-port 10 Gigabit Ethernet Copper Module, 48-port Gigabit Ethernet Copper Module, 48-port Gigabit Ethernet Fiber Module and 24-port Gigabit Ethernet Fiber Module.
WS-X6848-SFP-2TXL Specifications |
|
|
Standard protocols |
● IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, and IEEE 802.3ad,
● 1000BASE-T, 1000BASE-X (GBIC), 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, CWDM
|
|
Physical specifications |
● Occupies one slot in the Cisco Catalyst 6500 E-Series chassis ● Dimensions (H x W x D): 1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm) ● Weight: ◦ WS-X6816-10G-2T & 2TXL, WS-X6816-10T-2T & 2TXL: 13.6 pounds excluding X2 components; ¼ pound for each X2 |
|
Environmental conditions |
Operating temperature: ● Agency-certified for operation: 32 to 104°F (0 to 40°C) ● Design and tested for operation 32 to 130°F (0 to 55°C) ● Storage temperature: -40 to 167°F (-40 to 75°C) ● Relative humidity: 10 to 90 percent, noncondensing Operating altitude: ● Agency-certified for operation: -500 to 6500 ft (-150 to 2000m) ● Designed and tested for operation -500 to 10000 ft (-150 to 3000m) |
|
Regulatory compliance |
6800 Series 10 Gigabit Ethernet Copper module, when installed in a system, comply with the following EMC and safety standards: EMC Standards: ● FCC Part 15 (CFR 47) Class A ● ICES-003 Class A ● VCCI Class A ● EN55022 Class A ● EN55024 ● CISPR24 ● CISPR 22 Class A ● AS/NZS CISPR 22 Class A ● ETS 300 386 ● KN 22 Class A ● EN 50082-1 ● EN61000-3-2 ● EN61000-3-3 ● EN61000-6-1 ● CNS13438 Class A ● KN6100 -4 Series Safety Standards: ● UL 60950-1 ● CAN/CSA C22.2 No. 60950 ● EN 60950-1 ● IEC 60950-1 ● AS/NZS 60950-1 ● IEC 60825 Class 1 ● EN 60825 Class 1 ● 21CFR 1040 |
|
NEBS criteria levels |
SR-3580 Issue 3, June 2007 (GR-63-CORE, issue 3, and GR-1089-CORE, issue 4) |
|
ETSI |
● ETS 300 019-2-1, Class 1.1 Storage ● ETS 300 019-2-2, Class 2.1 and 2.2 Transportation ● ETS 300 019-2-3, Class 3.1E Stationary Use |
|
Network management |
● ETHERLIKE-MIB (RFC 1643) ● IF-MIB (RFC 1573) ● Bridge MIB (RFC 1493) ● CISCO-STACK-MIB ● CISCO-VTP-MIB ● CISCO-CDP-MIB ● RMON MIB (RFC 1757) ● CISCO-PAGP-MIB ● CISCO-STP-EXTENSIONS-MIB ● CISCO-VLAN-BRIDGE-MIB ● CISCO-VLAN-MEMBERSHIP-MIB ● ENTITY-MIB (RFC 2037) ● HC-RMON ● RFC1213-MIB (MIB-II) ● SMON-MIB |
|
Power requirements |
● WS-X6816-10G-2T: 488.5 Watts ● WS-X6816-10G-2TXL: 503.5 Watts ● WS-X6816-10T-2T: 514.96 Watts ● WS-X6816-10T-2TXL: 529.96 Watts |
|
Indicators |
● Status: green (operational), red (faulty), and orange (module booting) ● Link: green (port enabled and connected), orange (port disabled), and off (port enabled and not connected) |
