WS-X4548-GB-RJ45
Артикул:
₴ 168,567.00

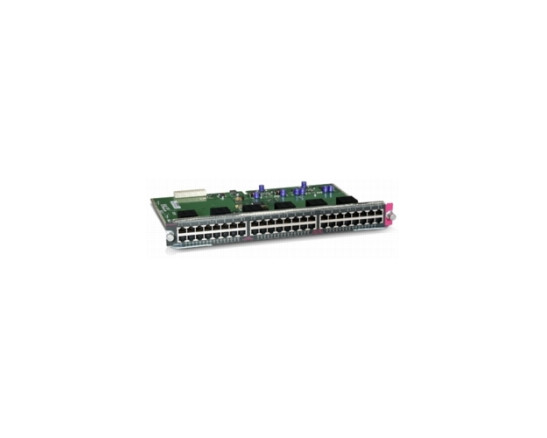

Catalyst 4500 Enhanced 48-Port 10/100/1000 Base-T (RJ-45) Linecard
The Cisco Catalyst 4500 Series offers two classes of line cards: classic and E-Series. Classic line cards provide 6 gigabits of switching capacity per slot. E-Series line cards provide increased switching capacity per slot. This increase in per-slot switching capacity with the E-Series line cards requires the Cisco Catalyst 4500E Series chassis and the Cisco Catalyst 4500E Series Supervisor. Two types of E-Series line cards are available based on the per-slot switching capacity. E-Series line cards numbered 47xx operate at 48 gigabits per slot, while E-Series line cards numbered 46xx operate at 24 gigabits per slot.
WS-X4548-GB-RJ45 Specifications |
|
|
Port Information |
|
|
Type |
E-Series 10/100/1000/Multigigabit Line Cards |
|
Number of Ports |
48 |
|
Port Speed |
10/100/1000 |
|
Port Type |
RJ-45 PoE IEEE 802.3af and Cisco prestandard |
|
Wire Rate |
8-to-1 |
|
Feature |
|
|
Standards |
● Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 803.3at, IEEE 802.3af, IEEE 802.3az ● 1000BASE-X (GBIC), 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, CWDM |
|
EtherChannel Technology |
● Gigabit EtherChannel: All 1000 Mbps ports ● 10 Gigabit EtherChannel: All 10Gbps ports ● IEEE 802.3ad (Link Aggregation Control Protocol): All 1000 Mbps ports ● Port Aggregation Protocol (PagP): Yes ● Number of ports per tuple: 8 ● EtherChannel and IEEE 802.3ad technology across line cards: Yes |
|
Physical Dimensions |
● Occupies one slot in the Cisco Catalyst 4500 Series platform ● Dimensions (H x W x D): 1.2 x 14.25 x 10.75 in. (3.0 x 36.2 x 27.3 cm) |
|
Environmental Conditions |
● Operating temperature: 32° to 104°F (0° to 40°C) ● Storage temperature: -40° to 167°F (-40° to 75°C) ● Relative humidity: 10 to 90%, noncondensing ● Operating altitude: -60 to 3000m |
|
Safety Conditions |
Fiber optic lasers: Class 1 laser products |
|
Safety Certifications |
● UL 1950 ● EN 60950 ● CSA-C22.2 no 950 ● IEC 950 ● IEC 60950-1, 2nd Ed. EN 60950-1, 2nd Ed. UL 60950-1, 2nd Ed. CAN/CSA-C22.2 No. 60950-1 2nd Ed.11 |
|
Electromagnetic Emissions Certifications |
● FCC 15J Class A ● VCCI Class A ● CE Marking ● EN 55022 Class A ● EN 55024 Class A ● CISPR 22 Class A ● AS/NZ 3548 ● NEBS Level 3 (GR-1089-CORE, GR-63-CORE) ● ETSI ETS-300386-2 ● EN 50121-4 |
|
ROHS Compliance |
ROHS5 |
|
Power and MTBF Information |
|
|
Max Rated Power (W) |
60 |
|
Rated MTBF (Hours) |
434,646 |
