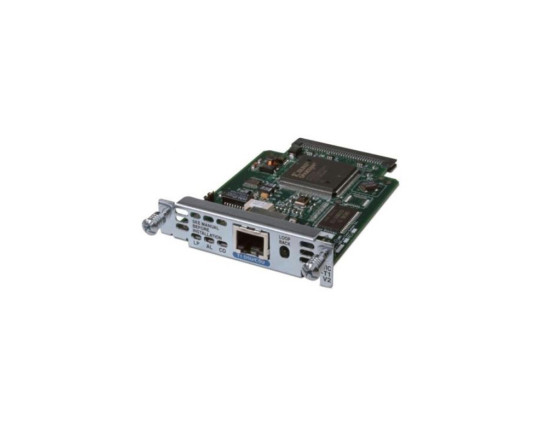

WIC-1DSU-T1-V2
Артикул:
₴ 483.00
Updated 1-Port T1/Fractional T1 DSU/CSU WAN Interface Card
The Cisco Updated 1-Port T1/Fractional T1 DSU/CSU WAN Interface Card, WIC-1DSU-T1-V2, enhances router capabilities by integrating data service unit and channel service unit functions into a single card. This integration facilitates simplified and cost-effective connections to the T1 or fractional T1 service provider's network, making it an ideal solution for businesses seeking efficient WAN connectivity.
WIC-1DSU-T1-V2 Specifications | |
| Product Name | Updated 1-Port T1/Fractional T1 DSU/CSU WAN Interface Card |
| Product Model | WIC-1DSU-T1-V2 |
| Brand | Cisco |
| Interface Type | T1/Fractional T1 |
| Connectivity Technology | Wired |
| Ports | 1 x Network - T1/Fractional T1 - RJ-48 |
| Compatibility | Cisco Integrated Services Routers: 1700, 1800, 2600, 2800, 3700, 3800 series |
| Transmission Speed | 1.544 Mbps |
| Data Link Protocol | T1 |
| Line Rate | T1/Fractional T1 |
| Line Coding Format | AMI, B8ZS |
| Framing Format | ANSI T1.403, D4, ESF |
| Diagnostic Features | Loopback, CSU/DSU |
| Power | Powered through router |
| Configuration Features | Integrated CSU/DSU |
| Digital Signaling Protocol | HDLC, Frame Relay, PPP |
| Management | SNMP, Telnet |
| Compliance Standards | IEEE 802.1Q |
| Environmental Parameters | Min Operating Temperature: 32��F, Max Operating Temperature: 104��F |
| Dimensions | Width: 3.1 in, Depth: 4.8 in, Height: 0.8 in |
