SM-ES3G-16-P
Артикул:
₴ 68,241.00
Enhcd EtherSwitch Service Module, L2/L3 switching, 16* 10/100/1000 GE ports, Enhanced POE, Cisco EnergyWise technology

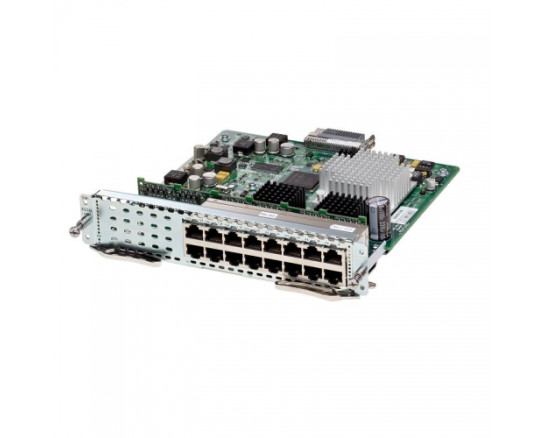

Figure 1 shows the appearance of SM-ES3G-16-P.
Table 1 shows the Quick Specs.
Model
SM-ES3G-16-P
Gigabit Ethernet Ports
16
Layer 2/3 Switching
X
PoE
X
Service Module Width
Single
Default Software
Universal Image: IP Base
Minimum Cisco EtherSwitch and Cisco IOS Software Release
12.2(52)EX
Minimum Router Cisco IOS Software Release
15(0).1M
Dimensions: Wide x Deep x High (cm.)
20.6 x 20.7 x 4.0
Weight (kg.)
2.2
Operational Temperature
0 to 40 °C
Nonoperational Temperature
-40 to 70 °C
Operational Humidity
5 to 90%
Nonoperational Humidity
5 to 95%
|
Model info |
SM-ES3G-16-P |
|
Product Type |
Cisco Enhanced EtherSwitch Service Module |
|
Port Density |
16 * 10/100/1000 GE ports |
|
Power over Ethernet (PoE) |
up to 20W per port |
|
Routing Protocol |
RIP-1, RIP-2, HSRP, static IP routing, RIPng |
|
Remote Management Protocol |
SNMP 1, SNMP 2,Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI |
|
Authentication Method |
Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
|
Supported router |
2911 / 2921 / 2951 / 3925 / 3945 |
|
Service Module Width |
single slot |
|
Power Redundancy |
RPS 2300 |
|
IP base feature |
• QoS |
|
IP service feature |
• IP unicast and IP Multicast routing • OSPFv3 |
|
Security Features |
• Dynamic ARP Inspection (DAI) • Centralized Authentication |
|
Software license |
• L-ES3G-16-IPS: IP Services License Upgrade 16 Port GE ES3 Enhanced EtherSwitch eDelivery • L-ES3: Upgrade Quantity license |
