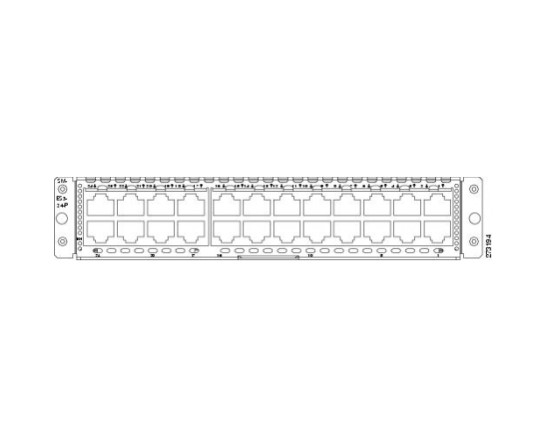

SM-ES3-24-P
Артикул:
₴ 110,469.00
Enhcd EtherSwitch Service Module, L2/L3 switching, 23 * 10/100 FE ports, 1 * 10/100/1000 GE ports, Enhanced POE, Cisco EnergyWise technology
The Cisco SM-ES3-24-P is an Enhanced EtherSwitch Service Module designed for reliable and efficient L2 and L3 switching. This versatile module supports 23 Fast Ethernet (FE) ports and one Gigabit Ethernet (GE) port, enriched with PoE capabilities and Cisco EnergyWise technology to optimize energy usage. It is a perfect solution for enhancing connectivity and managing energy consumption in various network environments.
| Model info | SM-ES3-24-P | |
| Product Type | Cisco Enhanced EtherSwitch Service Module | |
| Port Density | 23 * 10/100 FE ports and 1 10/100/1000 GE port | |
| Power over Ethernet (PoE) | up to 20W per port | |
| Routing Protocol | RIP-1, RIP-2, HSRP, static IP routing, RIPng | |
| Remote Management Protocol | SNMP 1, SNMP 2,Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI | |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ | |
| Supported router | 2911 / 2921 / 2951 / 3925 / 3945 | |
| Service Module Width | single slot | |
| Power Redundancy | RPS 2300 | |
| IP base feature | • QoS • ACLs • Static Routing • RIP v1,v2 • HSRP |
|
| IP service feature | • IP unicast and IP Multicast routing • EIGRP • OSPF • BGP • PIM • IPv6 routing |
• OSPFv3 • EIGRPv6 • IP SLA • VRF-lite |
| Security Features | • Dynamic ARP Inspection (DAI) • DHCP Snooping • IP Source Guard • Private VLANs • Unicast Reverse Path Forwarding (RPF) • IEEE 802.1x • Multidomain Authentication • MAC Authentication Bypass • Advanced ACLs • Administrative Traffic Protection • Switched Port Analyzer (SPAN) |
• Centralized Authentication • MAC Address Authentication • Port Security • Console Security • Bridge Protocol Data Unit (BPDU) Guard • Spanning-Tree Root Guard (STRG) • Dynamic VLAN Assignment • IGMP Filtering |
| Software license | • L-ES3-24-48-IPS: IP Services License Upgrade 24/48 Port FE ES3 Enhanced EtherSwitch eDelivery |
• L-ES3: Upgrade Quantity license |
