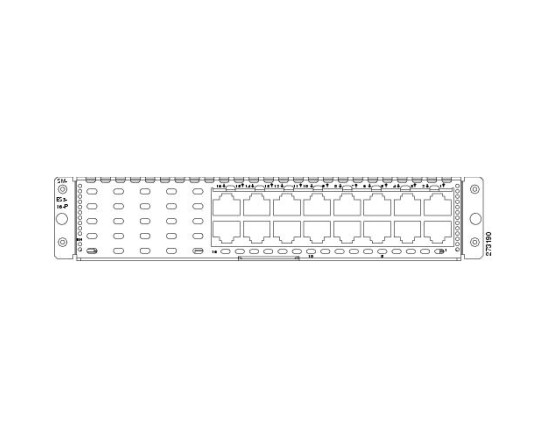

SM-ES3-16-P
Артикул:
₴ 82,938.00
Enhcd EtherSwitch Service Module, L2/L3 Switching, 15 * 10/100 FE ports, 1 * 10/100/1000 GE ports, Enhanced POE, Cisco EnergyWise technology
The Cisco SM-ES3-16-P Enhcd EtherSwitch Service Module is a versatile networking device designed to provide efficient Layer 2 and Layer 3 switching capabilities. Equipped with 15 10/100 Fast Ethernet ports and a single 10/100/1000 Gigabit Ethernet port, it supports enhanced Power over Ethernet (POE) and EnergyWise technology for power efficiency. Ideal for various networking applications, this service module ensures seamless connectivity and energy management for optimized network operations.
| Model info | SM-ES3-16-P | |
| Product Type | Cisco Enhanced EtherSwitch Service Module | |
| Port Density | 15 * 10/100 FE ports and 1 10/100/1000 GE port | |
| Power over Ethernet (PoE) | up to 20W per port | |
| Routing Protocol | RIP-1, RIP-2, HSRP, static IP routing, RIPng | |
| Remote Management Protocol | SNMP 1, SNMP 2,Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI | |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ | |
| Supported router | 2911 / 2921 / 2951 / 3925 / 3945 | |
| Service Module Width | single slot | |
| Power Redundancy | RPS 2300 | |
| IP base feature | • QoS • ACLs • Static Routing • RIP v1,v2 • HSRP |
|
| IP service feature | • IP unicast and IP Multicast routing • EIGRP • OSPF • BGP • PIM • IPv6 routing |
• OSPFv3 • EIGRPv6 • IP SLA • VRF-lite |
| Security Features | • Dynamic ARP Inspection (DAI) • DHCP Snooping • IP Source Guard • Private VLANs • Unicast Reverse Path Forwarding (RPF) • IEEE 802.1x • Multidomain Authentication • MAC Authentication Bypass • Advanced ACLs • Administrative Traffic Protection • Switched Port Analyzer (SPAN) |
• Centralized Authentication • MAC Address Authentication • Port Security • Console Security • Bridge Protocol Data Unit (BPDU) Guard • Spanning-Tree Root Guard (STRG) • Dynamic VLAN Assignment • IGMP Filtering |
| Software license | • L-ES3G-16-IPS: IP Services License Upgrade 16 Port GE ES3 Enhanced EtherSwitch eDelivery |
• L-ES3: Upgrade Quantity license |
