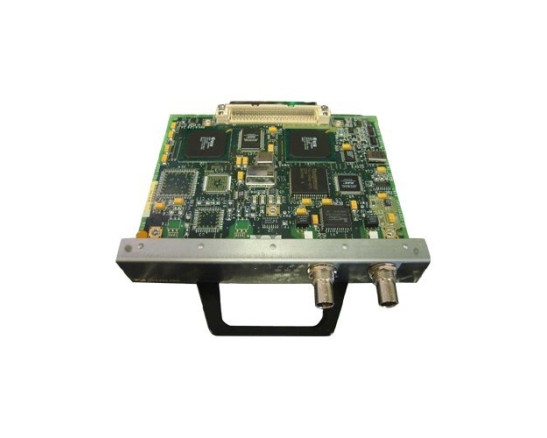

PA-E3 (USED)
Артикул:
₴ 234,531.00
Cisco 7200 Series 1 Port E3 Serial Port Adapter with E3 DSU
The Cisco PA-E3 (USED) is a versatile component from Cisco's 7200 Series featuring a 1 Port E3 Serial Port Adapter with E3 DSU. It's designed for network enhancement by providing substantial throughput performance, optimal for telecommunications and enterprise-level networking. Engineers and procurement personnel will find it beneficial for cost-effective, high-speed data transfer scenarios.
PA-E3 Specification |
|
| System Configurations |
• Up to four E3 ports cards per VIP2-40 and higher (two PA-2E3) • Up to six E3 ports per Cisco 7200 Series router (up to four E3 ports, two PA-2E3 port adapters, if Cisco 7200 Fast Ethernet input/output [I/O] controller used) • Carrier card option required for support on the Cisco 7304 Series router, and the Enhanced FlexWan provides support on the 7600 series router • Full online insertion and removal (OIR) support on Cisco 7200; OIR of VIP only on the Cisco 7500 |
| E3 Specifications |
• G.703 level interface with dual female 75-ohm BNC coaxial connectors per port (separate RX and TX) • Full-and half-duplex operation at E3 rate (34.368 MHz) • Scrambling and Subrate (22 Kbps to 34 Mbps data rate) support of major DSU vendors • Line build-out: 450 feet (135 meters) of 75-ohm type 728A or equivalent coaxial cable • Remote and local loopback support • Unframed or G.751 (software selectable-G.751 default) • HDB3 line coding • 16- and 32-bit cycles redundancy check (CRC) supported. (16-bit CRC default) • Software-setable E3 national service bits • 24-hour history maintained for error statistics and failure counts • E3 alarm/event detection (once per second polling) RCLK: receive clock signal AIS: alarm indication signal OOF: out of frame state FERF: far-end receive failure • Serial encapsulation: HDLC: High-Level Data Link Control PPP: Point-to-Point Protocol Frame Relay ATM-DXI: ATM Data Exchange Interface |
| LEDs per port |
• RCLK LED (Green) to indicate the port has detected a receive clock signal • AIS LED (Yellow) to indicate the port is receiving an AIS • OOF LED (Yellow) to indicate the port is in a receive OOF state • FERF LED (Yellow) to indicate the port is receiving a FERF • Local Loop (Yellow) to indicate E3 port looped locally • Remote Loop (Yellow) to indicate the far-end E3 port is looped |
| Physical Specifications | • Occupies one port adapter bay on any VIP2 model or one port adapter slot in any Cisco 7200 series router |
| Environmental Specifications |
• Operating temperature: 32 to 104° F (0 to 40° C) • Storage temperature: -4 to 149° F (-20 to 65° C) • Relative humidity: 10 to 90%, noncondensing |
| Compliance |
• E3 physical layer CCITT G.703 CCITT G.751 CCITT G.753 CTR 24 CCITT G.823 • Safety AS/NZS 3260 (Australia/New Zealand) EN60950/EN41003 (Europe) IEC 950 (National Deviations) • Emissions AS/NZS 3548 (Australia/New Zealand) EN55022 (CISPR 22) Class B (Europe) • Immunity IEC 1000-4-2 (ESD) IEC 1000-4-3 (Radiated) IEC 1000-4-4 (Fast Transients) IEC 1000-4-5 (Power Line Surge) IEC 1000-4-6 (Injected RF) IEC 1000-3-2 (Harmonic Distortions) |
