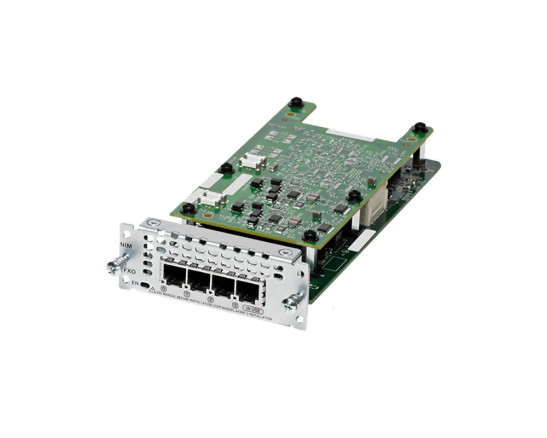

NIM-4FXO

NIM-4FXO Specifications

Product Number

NIM-4FXO

Product Description

4-port Network Interface Module - FXO (Universal)

Number of Ports

4

Cisco IOS Release

XE3.13.4, XE3.14.3, XE3.15.1, XE3.16 and above

Weight

0.44 lb (200 g)

Telnet or console

Remote and local configuration, monitoring, and troubleshooting from Cisco IOS XE Software command-line interface.

Simple Network Management Protocol

(SNMP)

●  Router and data service unit (DSU)/channel service unit (CSU) managed by single SNMP agent; router, DSU, and CSU appear as a single network entity to user

●  Standard MIB (MIB II)

●  Cisco Integrated DSU/CSU MIB

●  RFC 1406 T1 MIB, including Alarm Detection and Reporting

SNMP traps

Generated in response to alarms
