NIM-2T
Артикул:
₴ 26,082.00
Cisco 2-port 100-Mbps/1-Gbps dual-mode GE/SFP, Network Interface Module

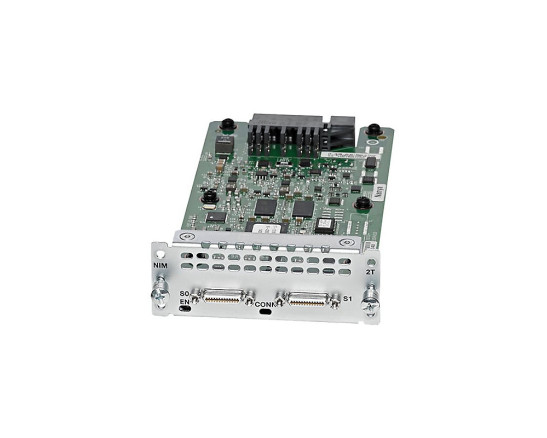

Figure 1 shows the appearance of NIM-2T.
Table 1 shows the Quick Specs.
• TBR1 and 2
• JATE digital
• UL 60950-1 (United States)
• CAN/CSA 22.2, 60950-1 (Canada)
• AS/NZS 60950-1 (Australia/New Zealand)
• EN60950-1 (Europe)
• IEC 60950-1 (International)
• EN300386
• CISPR24
• EN55024
• EN50082-1
• 61000-4-2/3/4/5/6/8/11
• FCC Part 15 Class A
• ICES-003 Class A
• EN55022 Class A
• CISPR22 Class A
• AS/NZSCISPR22 Class A
• VCCI Class A
• EN 300386
• EN61000-3-2/3
• CNS13438
• Singlewide NI, no slot restrictions
• Dimensions (H x W x D) 1.25 x 3.50 x 7.24 in. (3.18 x 8.89 x 18.39 cm)
• Operating temperature: 32 to 104°F (0 to 40°C)
• Storage temperature: -4 to 149°F (-20 to 65°C)
• Relative humidity: 10 to 90%, noncondensing
Table 2 shows the NIM density.
NIM-2T Specifications |
|
| General | |
| Device Type | Serial adapter |
| Form Factor | Plug-in module |
| Networking | |
| Ports | RS-232/449/530/V.35/X.21 x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232, RS-530, X.21, V.35, RS-449, RS-530A |
| Data Transfer Rate | 8 Mbps |
| Expansion / Connectivity | |
| Interfaces | 2 x RS-232/449/530/V.35/X.21 |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, JATE, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, CAN/CSA C22.2 No. 60950-1, VCCI Class A, EN 300386, CNS 13438 |
| Dimensions & Weight | |
| Width | 3.5 in |
| Depth | 7.2 in |
| Height | 1.3 in |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
